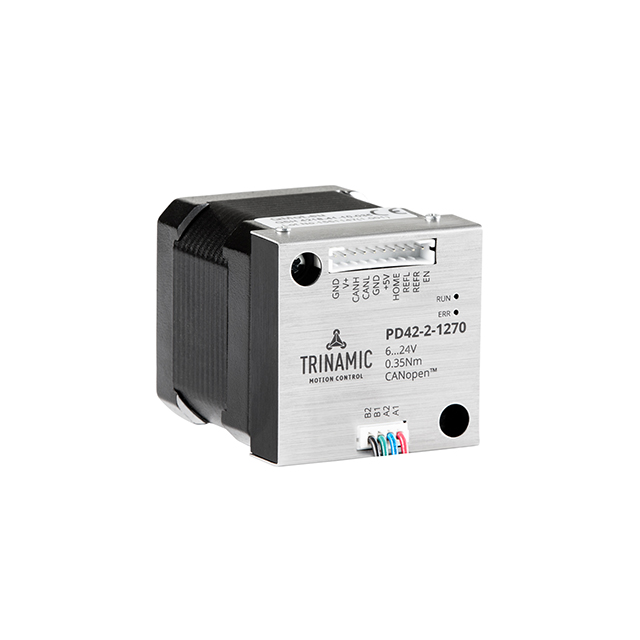

PD42-2-1270-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
PANDRIVE NEMA17, 24V, 50 OZ IN/
Deep-Dive with AI
Search across all available documentation for this part.
PD42-2-1270-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
PANDRIVE NEMA17, 24V, 50 OZ IN/
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PD42-2-1270-CANOPEN | PD42 Series |
|---|---|---|
| Coil Resistance | 1.2 Ohms | 1 - 4.5 Ohms |
| Coil Type | Bipolar | Bipolar |
| Current Rating (Amps) | 1 A | 1 A |
| Diameter - Shaft | - | 0.197 in |
| Diameter - Shaft | - | 5 mm |
| Features | Integrated Controller, Round Shaft | Integrated Controller, Round Shaft |
| Length - Shaft and Bearing | - | 24 mm |
| Length - Shaft and Bearing | - | 0.945 in |
| Mounting Hole Spacing | 1.22 in | 1.22 in |
| Mounting Hole Spacing | 31 mm | 31 mm |
| NEMA Frame Size | 17 | 17 |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Rotor Inertia | 57 gcm² | 35 - 68 gcm² |
| Size / Dimension [x] | 42 mm | 42 mm |
| Size / Dimension [x] | 1.654 in | 1.654 in |
| Size / Dimension [y] | 1.654 " | 1.654 " |
| Size / Dimension [y] | 42 mm | 42 mm |
| Step Angle | 1.8 ° | 1.8 ° |
| Steps per Revolution | 200 | 200 |
| Termination Style | Connector | Connector |
| Torque - Holding (oz-in / mNm) | 360 mNm | 220 - 440 mNm |
| Torque - Holding (oz-in / mNm) | 51 oz-in | 31.2 - 62.3 oz-in |
| Type | Hybrid | Hybrid |
| Voltage - Rated | 24 VDC | 24 VDC |
| Weight | 239.95 g | 219.99 - 350.17 g |
| Weight | 0.529 lb | 0.485 - 0.772 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 174.29 | |
| 5 | $ 160.18 | |||
| 10 | $ 154.45 | |||
| 25 | $ 148.06 | |||
PD42 Series
PANDRIVE NEMA17, 24V, 38 OZ IN/
| Part | Weight | Weight | Termination Style | Features | Current Rating (Amps) | Rotor Inertia | Step Angle | Mounting Hole Spacing | Mounting Hole Spacing | Coil Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Type | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Steps per Revolution | NEMA Frame Size | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Coil Resistance | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated PD42-1-1270-CANOPEN | 219.99 g | 0.485 lb | Connector | Integrated Controller, Round Shaft | 1 A | 35 gcm² | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 31.2 oz-in | 220 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1 Ohms | ||||
Analog Devices Inc./Maxim Integrated PD42-2-1270-TMCL | 239.95 g | 0.529 lb | Connector | Integrated Controller, Round Shaft | 1 A | 57 gcm² | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 51 oz-in | 360 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1.2 Ohms | ||||
Analog Devices Inc./Maxim Integrated PD42-3-1270-CANOPEN | 350.17 g | 0.772 lb | Connector | Integrated Controller, Round Shaft | 1 A | 68 gcm² | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 62.3 oz-in | 440 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1.4 Ohms | ||||
Analog Devices Inc./Maxim Integrated PD42-1-1270-TMCL | 219.99 g | 0.485 lb | Connector | Integrated Controller, Round Shaft | 1 A | 35 gcm² | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 31.2 oz-in | 220 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1 Ohms | ||||
Analog Devices Inc./Maxim Integrated PD42-1-1243-IOLINK | Connector | 1 A | 54 gcm² | 1.8 ° | 1.22 in | 31 mm | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 49.56 oz-in | 350 mNm | 17 | 24 VDC | 4.5 Ohms | 0.197 in | 5 mm | 24 mm | 0.945 in | |||||||
Analog Devices Inc./Maxim Integrated PD42-3-1270-TMCL | 350.17 g | 0.772 lb | Connector | Integrated Controller, Round Shaft | 1 A | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 62.3 oz-in | 440 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1.4 Ohms | |||||
Analog Devices Inc./Maxim Integrated PD42-2-1270-CANOPEN | 239.95 g | 0.529 lb | Connector | Integrated Controller, Round Shaft | 1 A | 57 gcm² | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 51 oz-in | 360 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1.2 Ohms |
Description
General part information
PD42 Series
Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 1 A 24VDC
