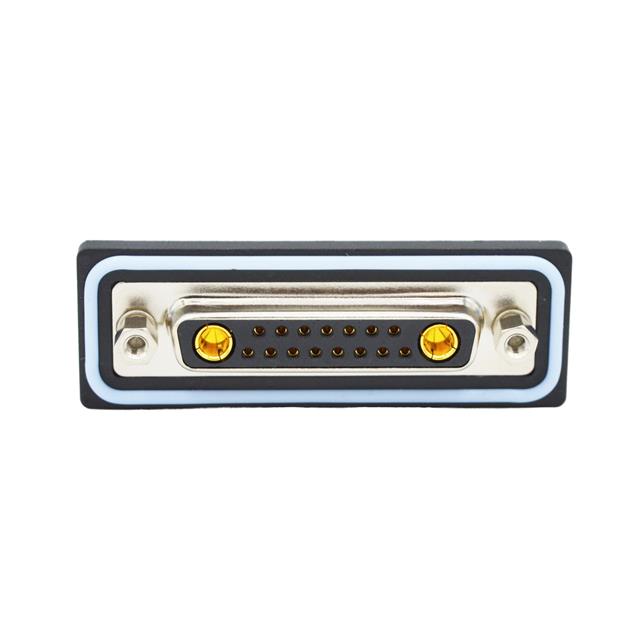

CDFV17W2213L211

Active

MH Connectors

CONN D-SUB RCPT 17P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDFV17W2213L211

Active

MH Connectors

CONN D-SUB RCPT 17P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFV17W2213L211

Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal and Power
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	17W2, 3 (DB, B)
Termination	Solder

CDFV17W Series

Part	Number of Rows	Connector Style	Contact Type	Termination	Connector Type	Flange Feature	Material Flammability Rating	Features	Shell Size, Connector Layout	Contact Finish Thickness	Ingress Protection	Shell Material, Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Finish	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
MH Connectors CDFV17W2113L451	2	Combo D-Sub	Signal and Power	Solder	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	Board Lock Grounding Indents	17W2 3 (DB B)	Flash	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Brass	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Gold	15	2	Panel Mount Through Hole
MH Connectors CDFV17W2113L252	2	Combo D-Sub	Signal and Power	Solder	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	Board Lock Grounding Indents	17W2 3 (DB B)		IP67 - Dust Tight Waterproof	Nickel Plated Steel	Brass	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Gold	15	2	Panel Mount Through Hole	0.76 Ám	30 Áin
MH Connectors CDFV17W2213L251	2	Combo D-Sub	Signal and Power	Solder	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0		17W2 3 (DB B)	Flash	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Brass	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Gold	15	2	Panel Mount Through Hole
MH Connectors CDFV17W2113L211	2	Combo D-Sub	Signal and Power	Solder	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	Grounding Indents	17W2 3 (DB B)	Flash	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Brass	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Gold	15	2	Panel Mount Through Hole
MH Connectors CDFV17W2213L212	2	Combo D-Sub	Signal and Power	Solder	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0		17W2 3 (DB B)		IP67 - Dust Tight Waterproof	Nickel Plated Steel	Brass	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Gold	15	2	Panel Mount Through Hole	0.76 Ám	30 Áin
MH Connectors CDFV17W2213L452	2	Combo D-Sub	Signal and Power	Solder	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0		17W2 3 (DB B)		IP67 - Dust Tight Waterproof	Nickel Plated Steel	Brass	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Gold	15	2	Panel Mount Through Hole	0.76 Ám	30 Áin
MH Connectors CDFV17W2113L251	2	Combo D-Sub	Signal and Power	Solder	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	Board Lock Grounding Indents	17W2 3 (DB B)	Flash	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Brass	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Gold	15	2	Panel Mount Through Hole
MH Connectors CDFV17W2213L211	2	Combo D-Sub	Signal and Power	Solder	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0		17W2 3 (DB B)	Flash	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Brass	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Gold	15	2	Panel Mount Through Hole
MH Connectors CDFV17W2113L411	2	Combo D-Sub	Signal and Power	Solder	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	Grounding Indents	17W2 3 (DB B)	Flash	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Brass	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Gold	15	2	Panel Mount Through Hole
MH Connectors CDFV17W2213L451	2	Combo D-Sub	Signal and Power	Solder	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0		17W2 3 (DB B)	Flash	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Brass	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Gold	15	2	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 21.78
		10	$ 16.78
		25	$ 15.19
		40	$ 14.45
		80	$ 13.44
		230	$ 12.08
		440	$ 11.35

Description

General part information

CDFV17W Series

17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
