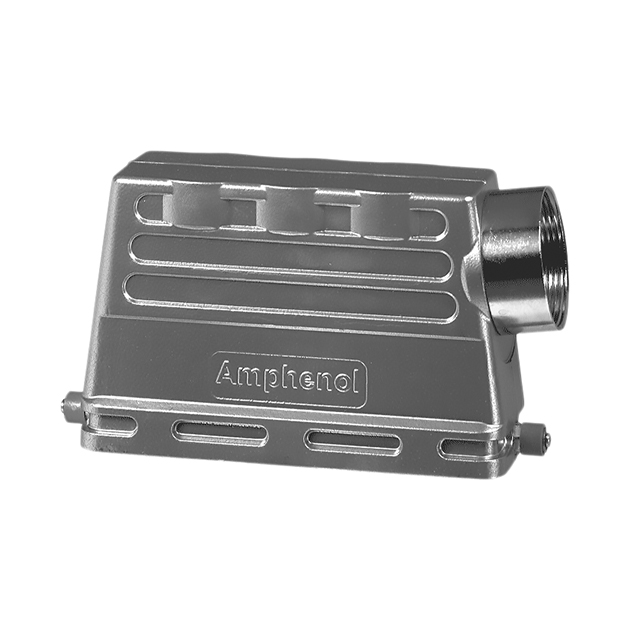

C146 10R024 506 8

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE24 M32

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE24 M32

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10R024 506 8

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Side Entry
Thread Size	M32

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Material	Thread Size	Lock Location	Style	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Connector Type	Size
Amphenol Tuchel Industrial C146 10R024 500 8	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	M32	Locking Clip (2) on Base Bottom	Side Entry	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	E24
Amphenol Tuchel Industrial C146 10R024 500 1	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	M32	Locking Clip (2) on Base Bottom	Side Entry	120 mm	4.724 "	43 mm	62 mm	1.693 in	2.441 "	Hood	E24
Amphenol Tuchel Industrial C146 10R024 506 8	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	M32	Locking Clip (1) on Base Bottom	Side Entry	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	E24
Amphenol Tuchel Industrial C146 10R024 601 8	100 °C	-40 °C	IP65 - Dust Tight Water Resistant	Aluminum Die Cast		Locking Clip (2) on Base Bottom	Top Entry	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	E24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	45	$ 21.04

General part information

Hood Connector Side Entry M32 E24 IP65 - Dust Tight, Water Resistant
