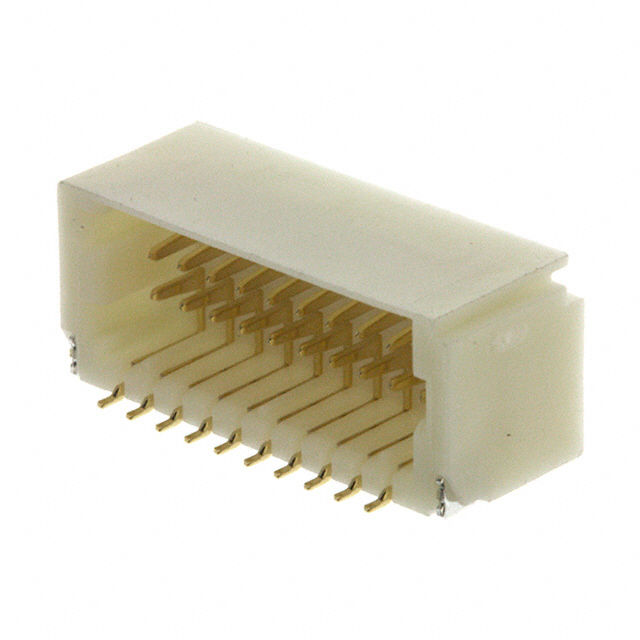

SM20B-SRDS-G-TF
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 20POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
SM20B-SRDS-G-TF
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 20POS 1MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM20B-SRDS-G-TF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Solder Retention |
| Insulation Color | Natural |
| Insulation Height [custom] | 5.51 mm |
| Insulation Height [custom] | 0.217 in |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.01 | |
| 10 | $ 1.75 | |||
| 100 | $ 1.56 | |||
| 500 | $ 1.30 | |||
| Digi-Reel® | 1 | $ 2.01 | ||
| 10 | $ 1.75 | |||
| 100 | $ 1.56 | |||
| 500 | $ 1.30 | |||
| Tape & Reel (TR) | 1250 | $ 1.12 | ||
| 2500 | $ 1.04 | |||
| 6250 | $ 0.99 | |||
| 8750 | $ 0.97 | |||
Description
General part information
SM20B-SR Series
Connector Header Surface Mount, Right Angle 20 position 0.039" (1.00mm)
