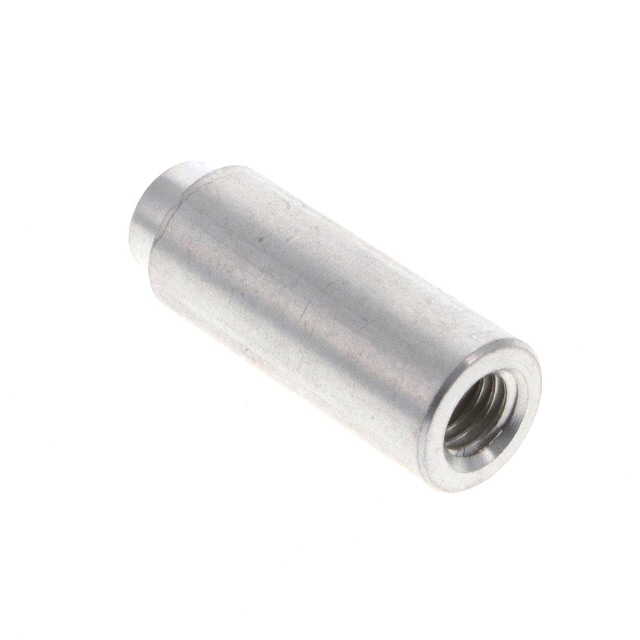

3086-B-1032-AL-7
ActiveRAF Electronic Hardware
5/16 RD X 3/4 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
3086-B-1032-AL-7
ActiveRAF Electronic Hardware
5/16 RD X 3/4 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3086-B-1032-AL-7 |
|---|---|
| Between Board Height | 0.75 in |
| Between Board Height | 0.75 in |
| Between Board Height | 19.05 mm |
| Color | Clear |
| Diameter - Outside [diameter] | 0.313 in |
| Diameter - Outside [diameter] | 7.94 mm |
| Gender | Swage, Female |
| Length - Overall | 0.855 in |
| Length - Overall | 21.72 mm |
| Material | Aluminum |
| Plating | Iridite |
| Screw, Thread Size | #10-32 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.22 | |
| 5 | $ 2.11 | |||
| 10 | $ 2.05 | |||
| 25 | $ 2.00 | |||
| 50 | $ 1.94 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.72 | |||
| 500 | $ 1.66 | |||
Description
General part information
3086-B Series
Round Standoff Threaded #10-32 Aluminum 0.750" (19.05mm) 3/4" Clear
Documents
Technical documentation and resources
No documents available
