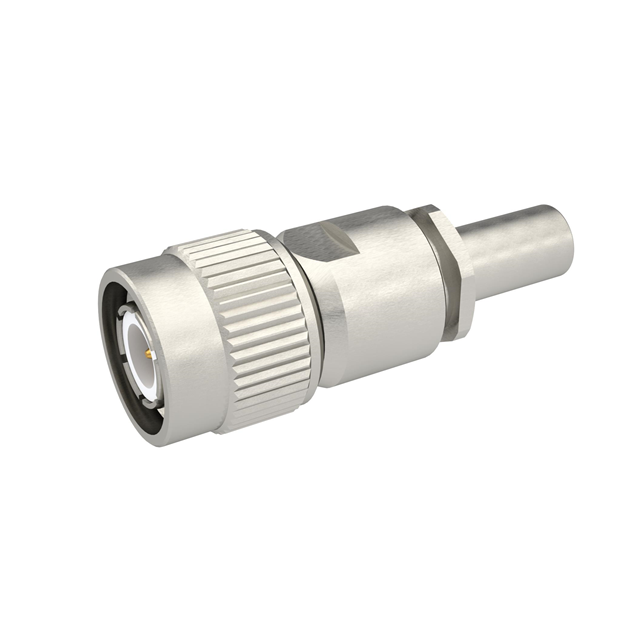

R143072000

Active

Radiall USA, Inc.

TNC 29220 M STR CR 5/50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC 29220 M STR CR 5/50

Technical Specifications

Parameters and characteristics for this part

Specification	R143072000

Body Finish	Nickel
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Number of Ports	Shield Termination	Cable Group	Cable Group	Center Contact Material	Body Finish	Frequency - Max [Max]	Mating Cycles	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Plating	Contact Termination	Mounting Type	Connector Style	Housing Color	Connector Type	Impedance	Dielectric Material
Radiall USA, Inc. R143072000	1	Crimp	141	RG-58	Brass	Nickel	4 GHz	500	500 V	-65 ░C	165 °C	Brass	Gold	Crimp	Free Hanging (In-Line)	TNC	Silver	Male Pin Plug	50 Ohms	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
