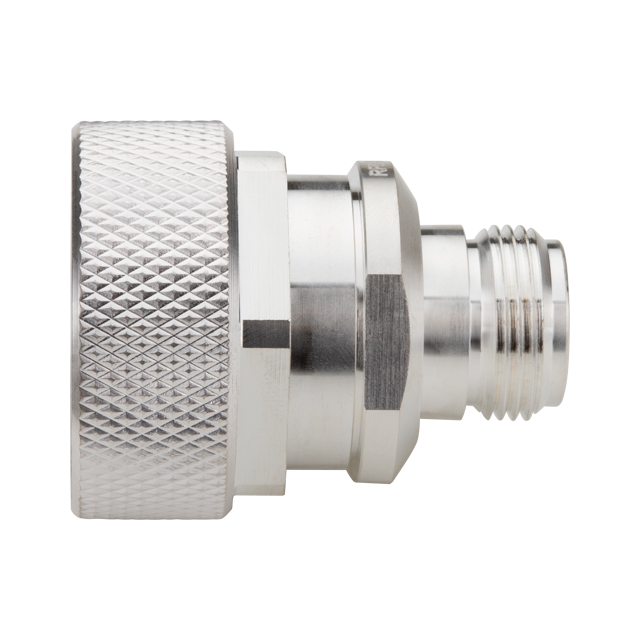

RFD-1671-2

Active

RF Industries

7/16 DIN MALE-N FEMALE

Search across all available documentation for this part.

Active

RF Industries

7/16 DIN MALE-N FEMALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFD-1671-2

Adapter Series	N to 7/16 DIN
Adapter Type	Plug to Jack
Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Male Pin, 7/16 Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

7/16 DIN MALE-N FEMALE

Part	Body Material	Center Contact Plating	Impedance	Conversion Type	Body Finish	Dielectric Material	Frequency - Max [Max]	Center Contact Material	Adapter Series	Style	Convert From (Adapter End)	Mounting Type	Convert To (Adapter End)	Adapter Type
RF Industries RFD-1671-2	Brass	Silver	50 Ohms	Between Series	Silver	Polytetrafluoroethylene (PTFE)	7.5 GHz	Beryllium Copper	N to 7/16 DIN	Straight	Female Socket, N Jack	Free Hanging (In-Line)	7/16 Plug, Male Pin	Plug to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohms
