SF1157-6013

Active

Amphenol SV Microwave

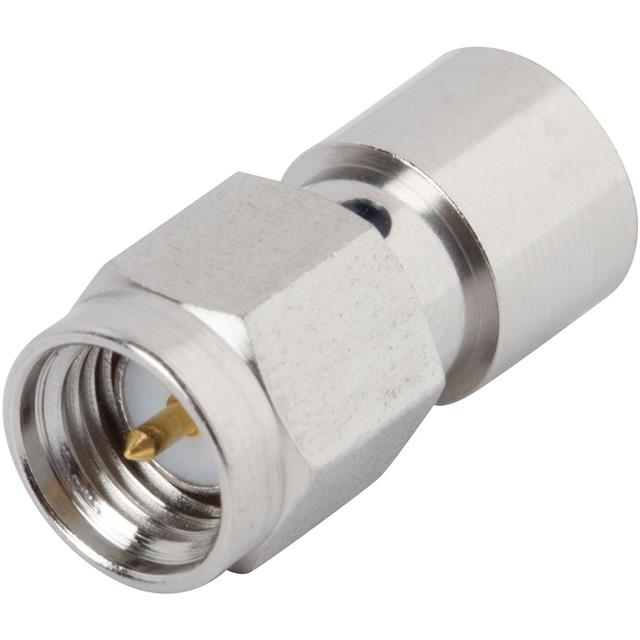

CONN ADAPT BMA JACK TO SMA PLUG

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT BMA JACK TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	SF1157-6013

Adapter Series	SMA to BMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BMA Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Style	Center Contact Material	Body Material	Dielectric Material	Mating Cycles	Adapter Type	Impedance	Center Contact Plating	Mounting Type	Fastening Type	Convert From (Adapter End)	Convert To (Adapter End)	Conversion Type	Adapter Series	Frequency - Max [Max]
Amphenol SV Microwave SF1157-6013	Straight	Beryllium Copper	Stainless Steel	Polytetrafluoroethylene (PTFE)	500	Plug to Jack	50 Ohms	Gold	Free Hanging (In-Line)	Snap-On Threaded	BMA Jack Female Socket	Male Pin SMA Plug	Between Series	SMA to BMA	18 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 53.81

General part information

Adapter Coaxial Connector BMA Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
