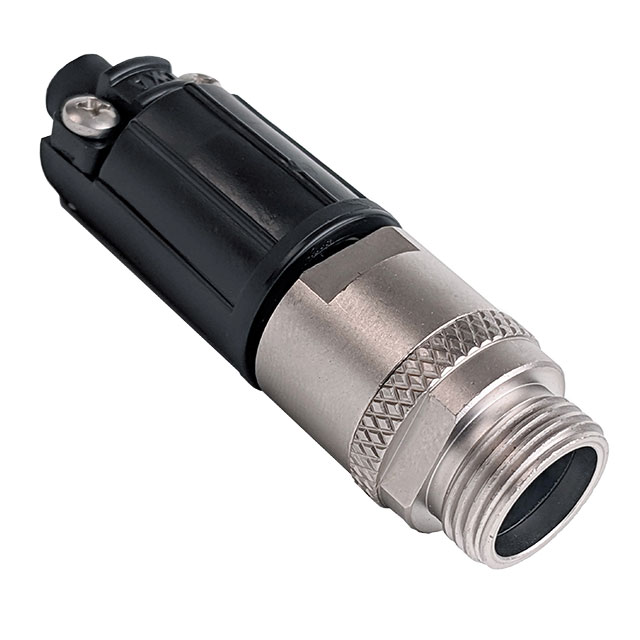

SF8282-4SG-520

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SF8282-4SG-520	SF8282 Series

Applications	Lighting, Medical	Lighting, Medical
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening [custom]	0.22 in	0.22 in
Cable Opening [custom]	5.6 mm	5.6 mm
Color	Black, Silver	Black, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5.6 A	5.6 A
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	2 - 4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass	Brass
Shielding	Shielded	Shielded

CONN RCPT FMALE 2POS SOLDER CUP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Insert Material	Orientation	Contact Material	Features	Shell Finish	Number of Positions	Primary Material	Mounting Type	Shell Material	Current Rating (Amps)	Backshell Material, Plating	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Color	Applications	Connector Type
Conxall/Switchcraft SF8282-2SG-520	85 °C	-40 °C	Shielded	Polybutylene Terephthalate (PBT)	Keyed	Copper Alloy	Backshell, Cable Clamp	Nickel	2	Metal	Free Hanging (In-Line)	Brass	5.6 A	Nylon, Polyamide (PA)	IP66/IP68	0.22 in	5.6 mm	Gold	Black, Silver	Lighting, Medical	Receptacle, Female Sockets
Conxall/Switchcraft SF8282-4SG-520	85 °C	-40 °C	Shielded	Polybutylene Terephthalate (PBT)	Keyed	Copper Alloy	Backshell, Cable Clamp	Nickel	4	Metal	Free Hanging (In-Line)	Brass	5.6 A	Nylon, Polyamide (PA)	IP66/IP68	0.22 in	5.6 mm	Gold	Black, Silver	Lighting, Medical	Receptacle, Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 33.65

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
