PF2003 NA005

Active

ALPHA WIRE

SLEEVING 0.229" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.229" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	PF2003 NA005

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	Natural
Diameter - Inside [diameter]	5.82 mm
Diameter - Inside [diameter]	0.229 in
Diameter - Outside [diameter]	0.289 "
Diameter - Outside [diameter]	7.34 mm
Environment Protection	Corrosion Resistant
Features	Clean Cut
Length	100 ft
Length	30.48 m
Material	Fiberglass, Silicone Coated
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness [custom]	0.51 mm
Wall Thickness [custom]	0.02 in

SLEEVING 0.229" ID FBRGLASS 100'

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Length	Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type Attributes	Features	Environment Protection	Abrasion Protection	Material Flammability Rating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wall Thickness [custom]	Wall Thickness [custom]	Material	Color
ALPHA WIRE PF2003 NA005	200 °C	-70 °C	Sleeving	100 ft	30.48 m	5.82 mm	0.229 in	Braided	Clean Cut	Corrosion Resistant	Abrasion Resistant, Fray Resistant	UL VW-1	0.289 "	7.34 mm	0.51 mm	0.02 in	Fiberglass, Silicone Coated	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

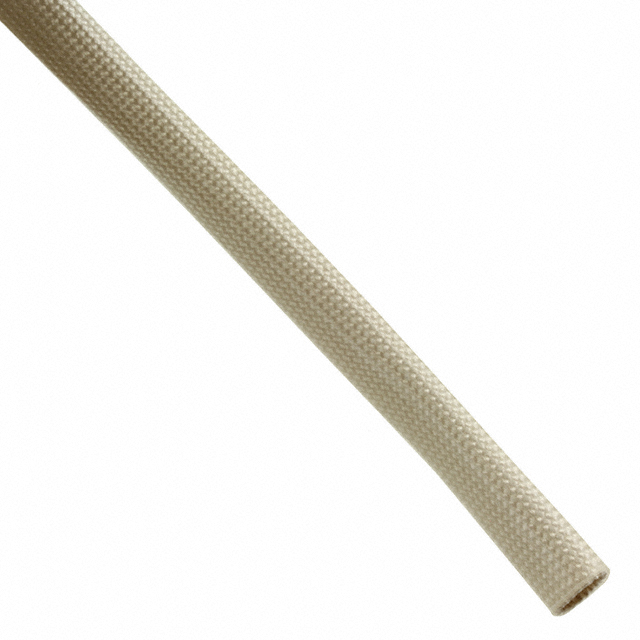

Natural Fiberglass, Silicone Coated Braided Sleeving 0.229" (5.82mm) 100' (30.48m)
