EN2P6M26P

Active

Switchcraft Inc.

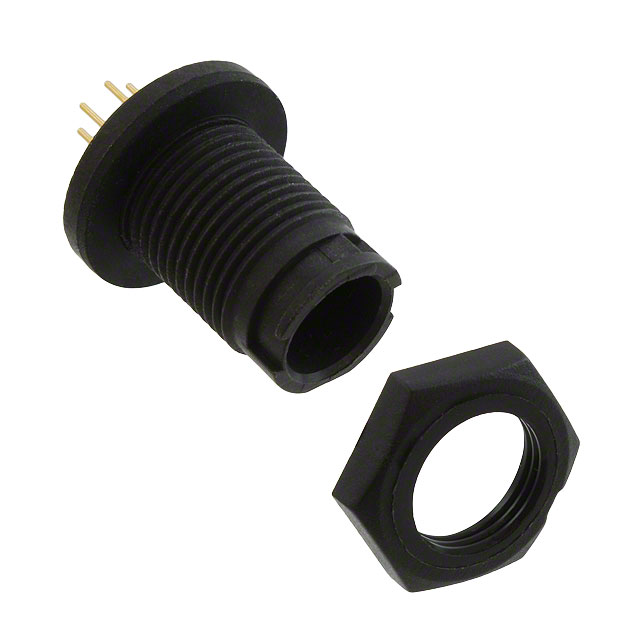

CONN RCPT MALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2P6M26P	EN2P6M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	6	6
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder, Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE 6POS GOLD SOLDER

Part	Number of Positions	Orientation	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Termination	Color	Contact Finish - Mating	Fastening Type	Mounting Type	Insert Material	Applications	Shielding	Ingress Protection	Voltage Rating	Primary Material	Contact Material	Connector Type
Switchcraft Inc. EN2P6M26P	6	Keyed	UL94 V-0	85 °C	-40 °C	Bulkhead - Front Side Nut	Solder	Black	Gold	Bayonet Lock	Panel Mount, Through Hole	Elastomer	Communication Systems, Industrial, Marine, Medical	Unshielded	IP66, IP67, IP68	125 VAC	Plastic	Copper Alloy	Male Pins, Receptacle
Switchcraft Inc. EN2P6M26PK	6	Keyed	UL94 V-0	85 °C	-40 °C	Bulkhead - Front Side Nut	Solder	Black	Gold	Bayonet Lock	Panel Mount, Through Hole	Elastomer	Communication Systems, Industrial, Marine, Medical	Unshielded	IP66, IP67, IP68	125 VAC	Plastic	Copper Alloy	Male Pins, Receptacle
Switchcraft Inc. EN2P6M26K	6	Keyed	UL94 V-0	85 °C	-40 °C	Bulkhead - Front Side Nut	Crimp, Solder Cup	Black	Gold	Bayonet Lock		Elastomer	Communication Systems, Industrial, Marine, Medical	Unshielded	IP66, IP67, IP68	125 VAC	Plastic	Copper Alloy	Male Pins, Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder
