MPG29 NC080

Active

ALPHA WIRE

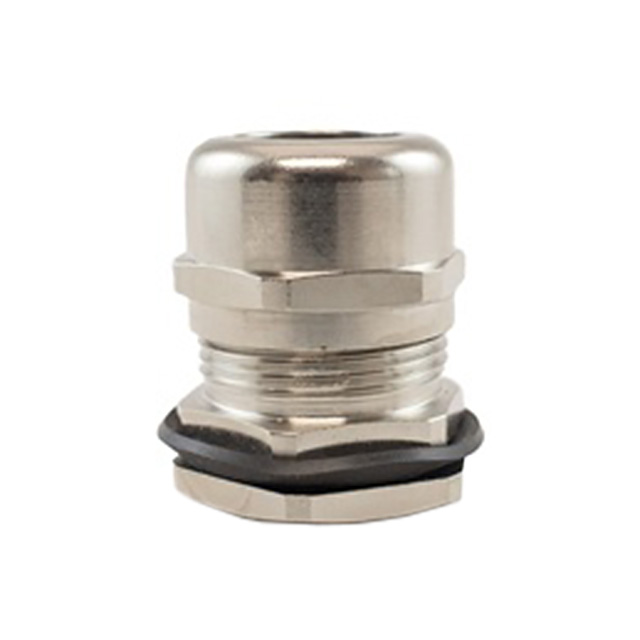

CABLE GLND 18.01-25MM PG29 BRASS

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE GLND 18.01-25MM PG29 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	MPG29 NC080

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max)	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm
Panel Hole Size	1.457 in
Panel Hole Size	37 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG29
Type	Cable Gland

CABLE GLND 18.01-25MM PG29 BRASS

Part	Includes	Material	Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Thread Length	Thread Length	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size
ALPHA WIRE MPG29 NC080	O-Ring, Seal	Brass, Nickel Plated	Cable Gland	100 °C	-20 C	IP66/IP68	PG29	0.984 in	25 mm	8 mm	0.315 in	Silver	0.709 in	18.01 mm	1.457 in	37 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG29 Silver
