GTDJI5000YL4R6B
ActiveGlobTek, Inc.

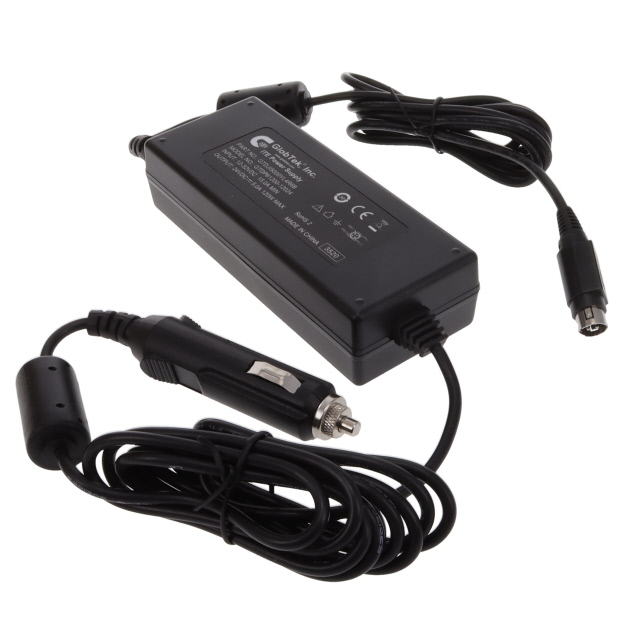

DC/DC CONVERTER 24V 120W
GTDJI5000YL4R6B
ActiveGlobTek, Inc.
DC/DC CONVERTER 24V 120W
Description
General part information
GTDJI5000 Series
Enclosed DC DC Converter 1 Output 24V 5A 32V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | GTDJI5000YL4R6B |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, EAC, VCCI, CE |
| Current - Output (Max) | 5 A |
| Efficiency | 85 % |
| Mounting Type | Desktop |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 120 W |
| Size / Dimension Height | 1.2 in |
| Size / Dimension Length | 5.28 in |
| Size / Dimension Width | 2.13 in |
| Type | Enclosed |
| Voltage - Input (Max) | 32 V |
| Voltage - Input (Min) | 12 V |
| Voltage - Output 1 | 24 V |
