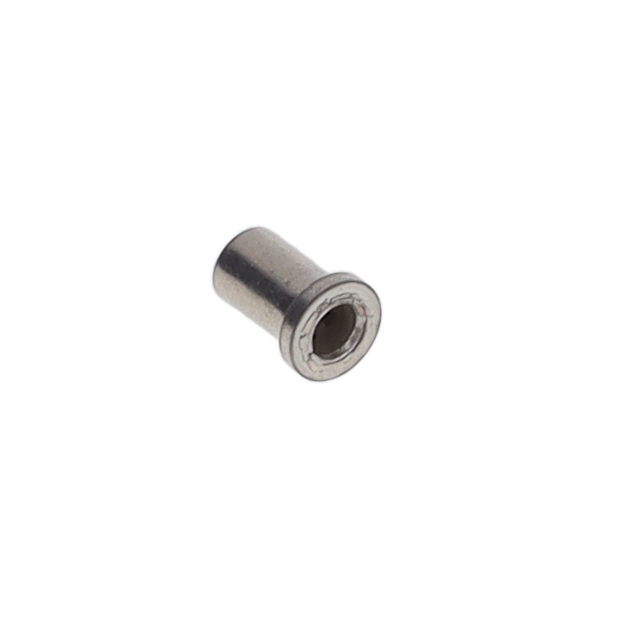

7305-0-15-01-47-01-10-0

Active

Mill-Max Manufacturing Corp.

RECEPTACLE WITH NO TAIL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7305-0-15-01-47-01-10-0

Active

Mill-Max Manufacturing Corp.

RECEPTACLE WITH NO TAIL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7305-0-15-01-47-01-10-0

Accepts Pin Diameter [Max]	0.037 "
Accepts Pin Diameter [Max]	0.94 mm
Accepts Pin Diameter [Min]	0.64 mm
Accepts Pin Diameter [Min]	0.025 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.96 mm
Flange Diameter [diameter]	0.077 in
Length - Overall	2.67 mm
Length - Overall	0.105 in
Mounting Hole Diameter [diameter]	0.06 in
Mounting Hole Diameter [diameter]	1.52 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	2.67 mm
Socket Depth	0.105 in
Tail Type	No Tail
Termination	Solder

7305-0 Series

Part	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall	Length - Overall	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 7305-0-15-01-47-27-10-0	Beryllium Copper	0.76 Ám	30 Áin	0.051 in	1.3 mm	No Tail	Solder	1.96 mm	0.077 in	2.67 mm	0.105 in	0.64 mm	0.025 in	-55 °C	125 °C	Gold	0.037 "	0.64 mm	0.94 mm	0.025 "	0.06 in	1.52 mm	2.67 mm	0.105 in
Mill-Max Manufacturing Corp. 7305-0-15-01-47-01-10-0	Beryllium Copper	0.76 Ám	30 Áin	0.051 in	1.3 mm	No Tail	Solder	1.96 mm	0.077 in	2.67 mm	0.105 in	0.64 mm	0.025 in	-55 °C	125 °C		0.037 "	0.64 mm	0.94 mm	0.025 "	0.06 in	1.52 mm	2.67 mm	0.105 in
Mill-Max Manufacturing Corp. 7305-0-15-15-47-27-10-0	Beryllium Copper	0.76 Ám	30 Áin	0.051 in	1.3 mm	No Tail	Solder	1.96 mm	0.077 in	2.67 mm	0.105 in	0.64 mm	0.025 in	-55 °C	125 °C	Gold	0.037 "	0.64 mm	0.94 mm	0.025 "	0.06 in	1.52 mm	2.67 mm	0.105 in
Mill-Max Manufacturing Corp. 7305-0-15-01-47-14-10-0	Beryllium Copper	0.25 Ám	10 Áin	0.051 in	1.3 mm	No Tail	Solder	1.96 mm	0.077 in	2.67 mm	0.105 in	0.64 mm	0.025 in	-55 °C	125 °C	Gold	0.037 "	0.64 mm	0.94 mm	0.025 "	0.06 in	1.52 mm	2.67 mm	0.105 in
Mill-Max Manufacturing Corp. 7305-0-15-80-47-14-10-0	Beryllium Copper	0.25 Ám	10 Áin	0.051 in	1.3 mm	No Tail	Solder	1.96 mm	0.077 in	2.67 mm	0.105 in	0.64 mm	0.025 in	-55 °C	125 °C	Gold	0.037 "	0.64 mm	0.94 mm	0.025 "	0.06 in	1.52 mm	2.67 mm	0.105 in
Mill-Max Manufacturing Corp. 7305-0-15-15-47-14-10-0	Beryllium Copper	0.25 Ám	10 Áin	0.051 in	1.3 mm	No Tail	Solder	1.96 mm	0.077 in	2.67 mm	0.105 in	0.64 mm	0.025 in	-55 °C	125 °C	Gold	0.037 "	0.64 mm	0.94 mm	0.025 "	0.06 in	1.52 mm	2.67 mm	0.105 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.35
		10	$ 1.14
		100	$ 1.03
		1000	$ 0.75
		5000	$ 0.65
		10000	$ 0.62

Description

General part information

7305-0 Series

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) No Tail Solder
