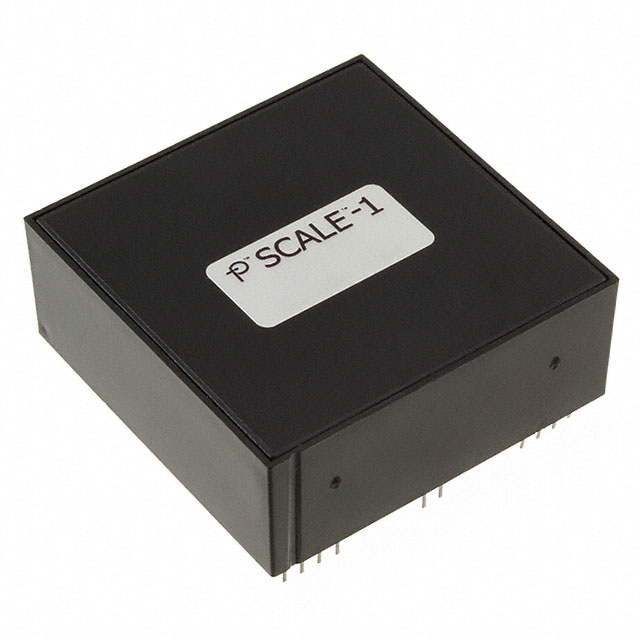

IGD515EI

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Search across all available documentation for this part.

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	IGD515EI

Channel Type	Single
Current - Peak Output (Source, Sink)	15 A, 15 A
Driven Configuration	High-Side, Low-Side
Logic Voltage - VIL, VIH	3.8 V, 0.9 V
Mounting Type	Through Hole
Number of Drivers	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rise / Fall Time (Typ) [custom]	40 ns
Rise / Fall Time (Typ) [custom]	40 ns
Supplier Device Package	Module
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	12 V

Part	Package / Case	Package / Case	Supplier Device Package	Number of Drivers	Channel Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Driven Configuration	Logic Voltage - VIL, VIH	Current - Peak Output (Source, Sink)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
Power Integrations IGD515EI-34	24 Leads	36-DIP Module	Module	1	Single	12 V	16 V	High-Side Low-Side	0.9 V 3.8 V	15 A 15 A	85 °C	-40 °C	Through Hole	40 ns	40 ns
Power Integrations IGD515EI		Module	Module	1	Single	12 V	16 V	High-Side Low-Side	0.9 V 3.8 V	15 A 15 A	85 °C	-40 °C	Through Hole	40 ns	40 ns
