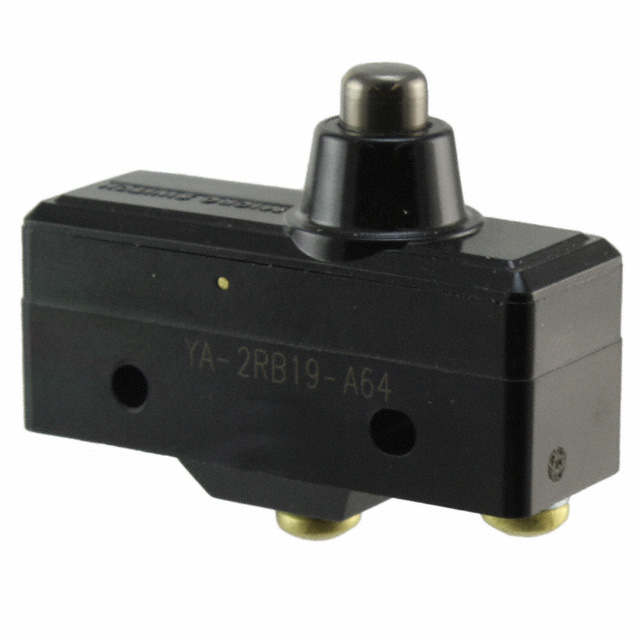

YA-2RB19-A64

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 20A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 20A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NO Chassis Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACT SPST-NO 20A 125V

Part	Current Rating (Amps)	Pretravel	Pretravel	Overtravel	Overtravel	Differential Travel	Differential Travel	Operating Position	Operating Position	Operating Force [Min]	Operating Force [Max]	Switch Function	Mechanical Life	Release Force	Actuator Type	Termination Style	Mounting Type	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit
Honeywell Sensing and Productivity Solutions YA-2RB-A64	20 A, 500 mA	0.05 in	1.27 mm	0.094 in	2.4 mm	0.007 in	0.18 mm	26.2 mm	1.03 "	397 gf	624 gf	Off-Mom	20000000 Cycles	283 gf	Round (Pin Plunger)	Screw Terminal	Chassis Mount	125 V	125 VDC	85 °C	-55 °C	SPST-NO
Honeywell Sensing and Productivity Solutions YA-2RB19-A64	20 A, 500 mA	0.05 in	1.27 mm	0.094 in	2.4 mm	0.007 in	0.18 mm	26.2 mm	1.03 "	397 gf	624 gf	Off-Mom	20000000 Cycles	283 gf	Round (Pin Plunger)	Screw Terminal	Chassis Mount	125 V	125 VDC	85 °C	-55 °C	SPST-NO
