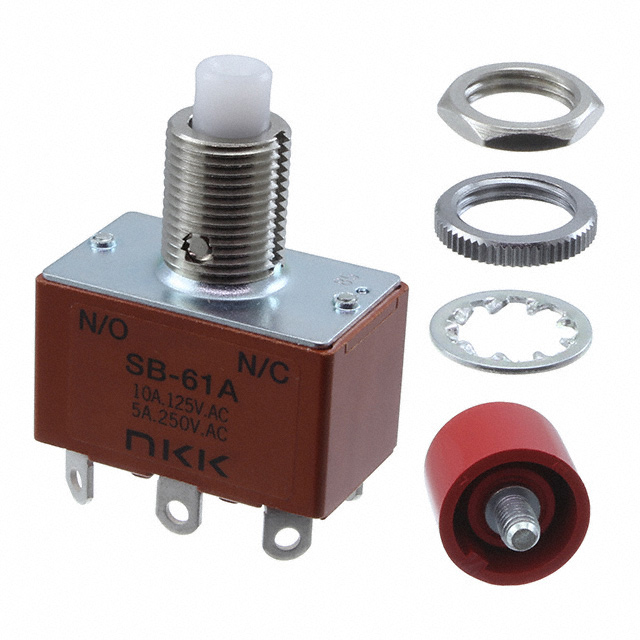

SB61A/AT414C

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 10A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	SB61A/AT414C

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

Part	Type	Termination Style	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Circuit	Mounting Type	Color - Actuator/Cap	Mechanical Life	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - AC	Electrical Life	Actuator Type
NKK Switches SB61A/AT414C	Standard	Solder Lug	-10 °C	158 °F	DPDT	Panel Mount Rear	Red	30000 Steps	10 A	On-Mom	12.5 mm	No Marking	125 V	10000 Cycles	Button Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Panel Mount, Rear
