FFB.3S.410.CTAC11

Active

LEMO

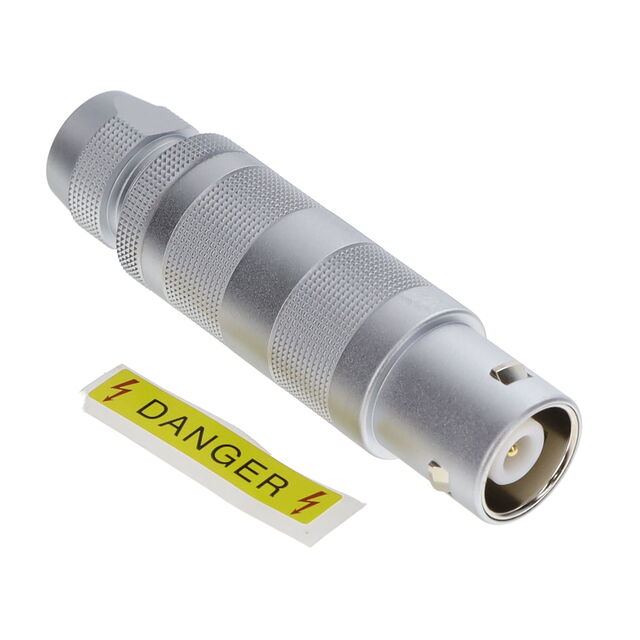

CONN PLUG MALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFB.3S.410.CTAC11

Active

LEMO

CONN PLUG MALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFB.3S.410.CTAC11	FFB.3S Series

Accessory Type	-	Back-Nut, Collet
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	5.7 mm
Cable Opening	-	0.169 - 0.394 in
Cable Opening	-	0.165 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.102 in
Cable Opening	-	2.6 mm
Cable Opening [custom]	9.8 mm, 10.5 mm	4.3 - 10.5 mm
Cable Opening [custom]	0.386 in, 0.413 in	0.386 - 0.413 in
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets, Insert
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass, Bronze
Current Rating (Amps)	10 A	8 - 43 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell, Insert Only, Requires Shell
For Use With/Related Products	-	3S Series Connector
Ingress Protection	IP50	IP50
Insert Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Material	-	Brass
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	1	1
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	410	140 - 415
Shielding	Shielded	Shielded

FFB.3S Series

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Mounting Type	Number of Positions	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Current Rating (Amps)	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Shell Material	Color	Backshell Material, Plating	Features	Primary Material	Shell Finish	Contact Material	Connector Type	Contact Finish - Mating	Shell Size - Insert	Fastening Type	Cable Opening [custom]
LEMO FFB.3S.415.CTAC57	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	8 A	IP50	5.7 mm	4.3 mm	0.169 in, 0.224 in	Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	415	Push-Pull
LEMO FFB.3S.410.CTAC11	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	10 A	IP50		9.8 mm, 10.5 mm		Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	410	Push-Pull	0.386 in, 0.413 in
LEMO FFB.3S.415.CTAC11	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	8 A	IP50		9.8 mm, 10.5 mm		Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	415	Push-Pull	0.386 in, 0.413 in
LEMO FFB.3S.415.CTLC11	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	8 A	IP50		9.8 mm, 10.5 mm		Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Bronze	Female Sockets, Plug	Gold	415	Push-Pull	0.386 in, 0.413 in
LEMO FFB.3S.410.ZTA		1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	10 A	IP50							Insert Only, Requires Shell			Brass	Insert, Male Pins	Gold	410
LEMO FFB.3S.410.CTAC62	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	10 A	IP50				Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	410	Push-Pull
LEMO FFB.3S.405.CTAC11Z	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	15 A	IP50		9.8 mm, 10.5 mm		Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	405	Push-Pull	0.386 in, 0.413 in
LEMO FFB.3S.405.ZTA		1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	15 A	IP50							Insert Only, Requires Shell			Brass	Insert, Male Pins	Gold	405
LEMO FFB.3S.415.CTLC62	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	8 A	IP50				Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Bronze	Female Sockets, Plug	Gold	415	Push-Pull
LEMO FFB.3S.415.CTAC62	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	8 A	IP50				Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	415	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 114.56
		10	$ 89.24
Newark	Each	1	$ 175.22
		10	$ 162.76
		25	$ 152.09
		50	$ 146.76
		100	$ 141.42

Description

General part information

FFB.3S Series

1 Position Circular Connector Plug, Male Pins Solder Cup
