FFB.3S.410.CTAC62

Active

LEMO

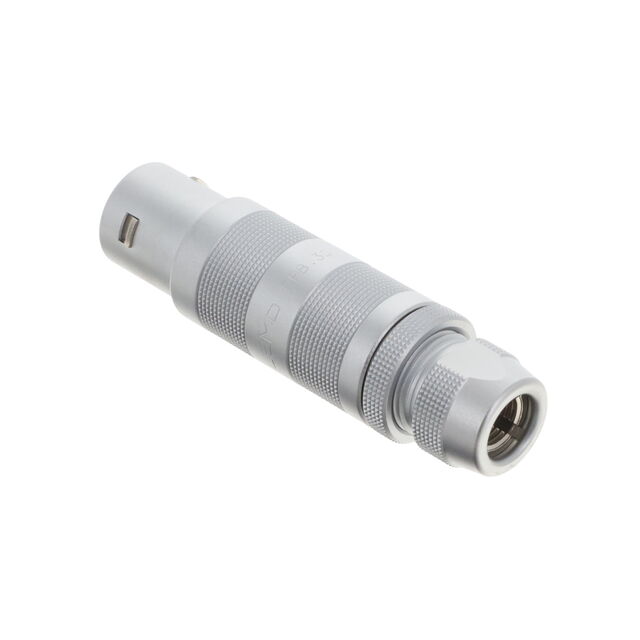

CONN PLUG MALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFB.3S.410.CTAC62

Active

LEMO

CONN PLUG MALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 115.70
		10	$ 90.13
		25	$ 82.04
		50	$ 76.59
		100	$ 71.66

Description

General part information

FFB.3S Series

1 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFB.3S.410.CTAC62	FFB.3S Series

Accessory Type	-	Back-Nut, Collet
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	5.7 mm
Cable Opening	-	4.3 - 10.5 mm
Cable Opening	-	0.169 - 0.394 in
Cable Opening	-	0.386 - 0.413 in
Cable Opening	-	0.165 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.102 in
Cable Opening	-	2.6 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets, Insert
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass, Bronze
Current Rating (Amps)	10 A	8 - 43 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell, Insert Only, Requires Shell
For Use With/Related Products	-	3S Series Connector
Ingress Protection	IP50	IP50
Insert Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Material	-	Brass
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	1	1
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	410	140 - 415
Shielding	Shielded	Shielded

FFB.3S Series

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Mounting Type	Number of Positions	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Current Rating (Amps)	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Shell Material	Color	Backshell Material, Plating	Features	Primary Material	Shell Finish	Contact Material	Connector Type	Contact Finish - Mating	Shell Size - Insert	Fastening Type	Cable Opening [custom]
LEMO FFB.3S.415.CTAC57	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	8 A	IP50	5.7 mm	4.3 mm	0.169 in, 0.224 in	Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	415	Push-Pull
LEMO FFB.3S.410.CTAC11	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	10 A	IP50		9.8 mm, 10.5 mm		Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	410	Push-Pull	0.386 in, 0.413 in
LEMO FFB.3S.415.CTAC11	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	8 A	IP50		9.8 mm, 10.5 mm		Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	415	Push-Pull	0.386 in, 0.413 in
LEMO FFB.3S.415.CTLC11	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	8 A	IP50		9.8 mm, 10.5 mm		Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Bronze	Female Sockets, Plug	Gold	415	Push-Pull	0.386 in, 0.413 in
LEMO FFB.3S.410.ZTA		1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	10 A	IP50							Insert Only, Requires Shell			Brass	Insert, Male Pins	Gold	410
LEMO FFB.3S.410.CTAC62	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	10 A	IP50				Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	410	Push-Pull
LEMO FFB.3S.405.CTAC11Z	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	15 A	IP50		9.8 mm, 10.5 mm		Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	405	Push-Pull	0.386 in, 0.413 in
LEMO FFB.3S.405.ZTA		1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	15 A	IP50							Insert Only, Requires Shell			Brass	Insert, Male Pins	Gold	405
LEMO FFB.3S.415.CTLC62	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	8 A	IP50				Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Bronze	Female Sockets, Plug	Gold	415	Push-Pull
LEMO FFB.3S.415.CTAC62	Free Hanging (In-Line)	1	Keyed	Shielded	-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	8 A	IP50				Brass	Silver	Brass, Chrome	Backshell	Metal	Chrome	Brass	Male Pins, Plug	Gold	415	Push-Pull
