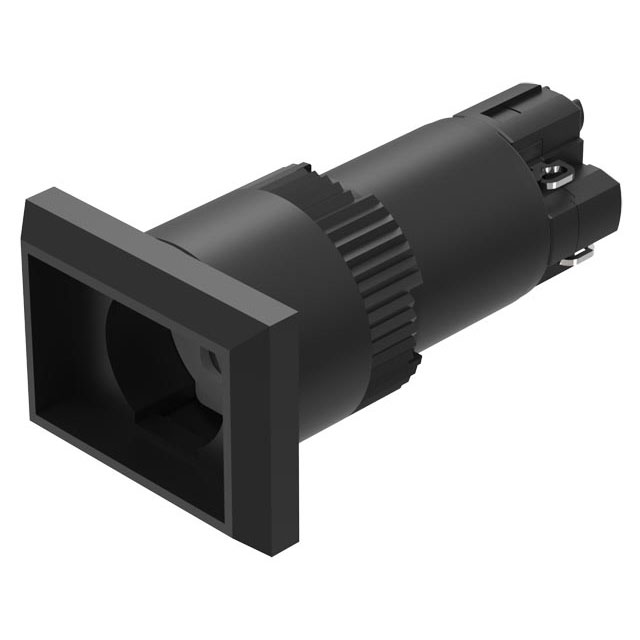

01-121.025
ActiveEAO
SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
01-121.025
ActiveEAO
SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 01-121.025 | 01-121 Series |
|---|---|---|
| - | - | |
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Rectangular, Button (Not Included) | Rectangular, Button (Not Included) |
| Circuit | DPST-NO/NC | DPST-NO/NC |
| Current Rating (Amps) | 5 A | 5 A |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 2000000 Cycles | 2000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C | 55 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm | 16 mm |
| Switch Function | Off-Mom, On-Mom | Off-Mom, On-Mom |
| Termination Style | Solder Lug | Quick Connect, Solder, Solder Lug |
| Termination Style | - | 0.11 in |
| Termination Style | - | 2.8 mm |
| Type | Standard | Standard |
| Voltage Rating - AC | 250 V | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.85 | |
| 10 | $ 38.99 | |||
| 25 | $ 37.18 | |||
| 50 | $ 34.69 | |||
| 100 | $ 33.33 | |||
| 250 | $ 31.06 | |||
01-121 Series
SWITCH PB DPST-NO/NC 5A 250V
| Part | Actuator Marking | Type | Voltage Rating - AC | Mechanical Life | Termination Style | Termination Style | Termination Style | Ingress Protection | Mounting Type | Circuit | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Switch Function | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 01-121.022 | No Marking | Standard | 250 V | 2000000 Cycles | 0.11 in | Quick Connect, Solder | 2.8 mm | IP40 | Panel Mount, Front | DPST-NO/NC | 16 mm | 55 °C | -25 °C | Rectangular, Button (Not Included) | Off-Mom, On-Mom | 5 A |
EAO 01-121.025 | No Marking | Standard | 250 V | 2000000 Cycles | Solder Lug | IP40 | Panel Mount, Front | DPST-NO/NC | 16 mm | 55 °C | -25 °C | Rectangular, Button (Not Included) | Off-Mom, On-Mom | 5 A | ||
EAO 01-121.012 |
Description
General part information
01-121 Series
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
