Technical Specifications
Parameters and characteristics for this part
| Specification | EV-VND7140AJ |
|---|---|
| Function | High Side Driver (Internal FET) |
| Primary Attributes | 2-Channel (Dual) |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | VND7140AJ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.47 | |
Description
General part information
EV-VND7140AJ Series

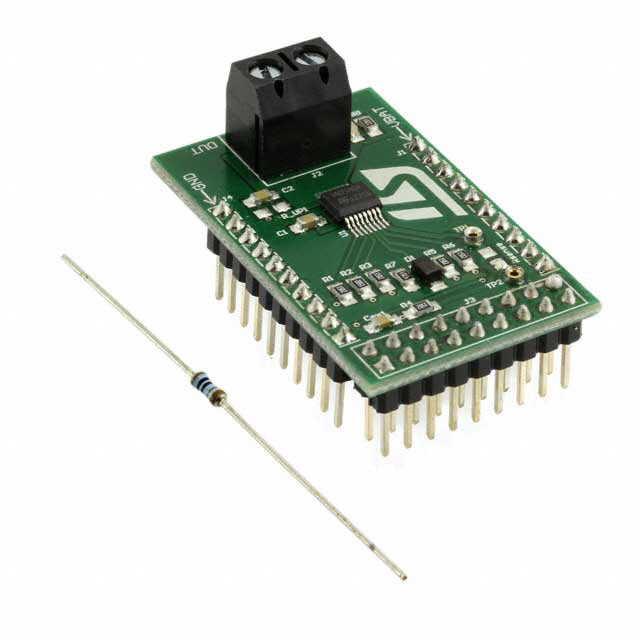

This board provides you an easy way to connect STMicroelectronics®VIPower®M0-7 technology into your existing system.
The board comes pre-assembled with VND7140AJ high-side driver. On board minimum set of electrical components (as for device datasheet recommendation) is enabling the user to directly connect the load, the power supply and the microcontroller without any additional effort in external component design and connection.
The VND7140AJ is a double channel high-side driver manufactured using ST proprietary VIPower technology and housed in PowerSSO-16 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface and to provide protection and diagnostics.
