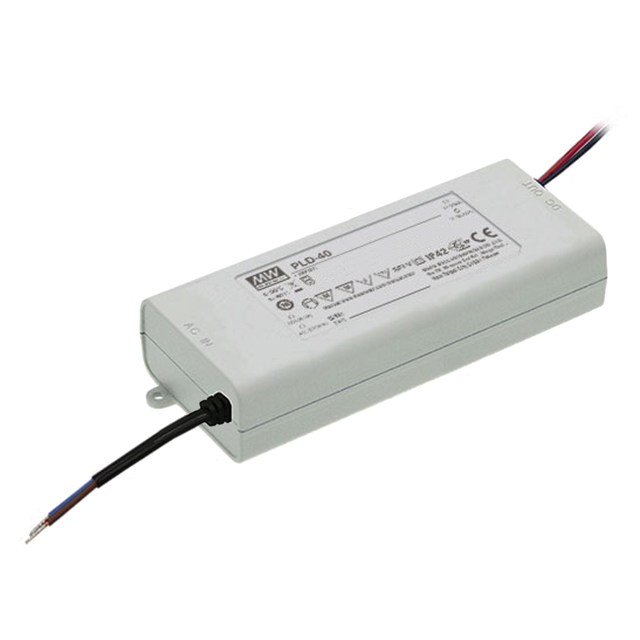

PLD-40-1400B

Active

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 17-29V 1.4A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 17-29V 1.4A

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Termination Style	Ratings	Approval Agency	Mounting Type	Current - Output (Max) [Max]	Number of Outputs	Voltage - Isolation	Efficiency	Features	Voltage - Output [Max]	Voltage - Output [Min]	Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Topology	Operating Temperature [Max]	Operating Temperature [Min]
MEAN WELL USA Inc. PLD-40-1750B	5.04 "	128 mm	2.36 "	1.24 "	60 mm	31.5 mm	40 W	Wire Leads	IP42	CB CE ENEC	Chassis Mount	1.75 A	1	3750 V	86 %	OTP SCP	23 V	13 V	Constant Current	180 VAC	295 VAC	AC DC Converter	50 °C	-30 ░C
MEAN WELL USA Inc. PLD-40-1400B	5.04 "	128 mm	2.36 "	1.24 "	60 mm	31.5 mm	41 W	Wire Leads	IP42	CB CE ENEC	Chassis Mount	1.4 A	1	3750 V	86 %	OTP SCP	29 V	17 V	Constant Current	180 VAC	295 VAC	AC DC Converter	50 °C	-30 ░C
MEAN WELL USA Inc. PLD-40-500B	5.04 "	128 mm	2.36 "	1.24 "	60 mm	31.5 mm	40 W	Wire Leads	IP42	CB CE ENEC	Chassis Mount	500 mA	1	3750 V	88 %	OTP SCP	80 VDC	45 V	Constant Current	180 VAC	295 VAC	AC DC Converter	50 °C	-30 ░C
MEAN WELL USA Inc. PLD-40-700B	5.04 "	128 mm	2.36 "	1.24 "	60 mm	31.5 mm	40 W	Wire Leads	IP42	CB CE ENEC	Chassis Mount	700 mA	1	3750 V	87 %	OTP SCP	57 V	34 V	Constant Current	180 VAC	295 VAC	AC DC Converter	50 °C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.4A 17 ~ 29V Constant Current LED Driver AC DC Converter Topology 1 Output
