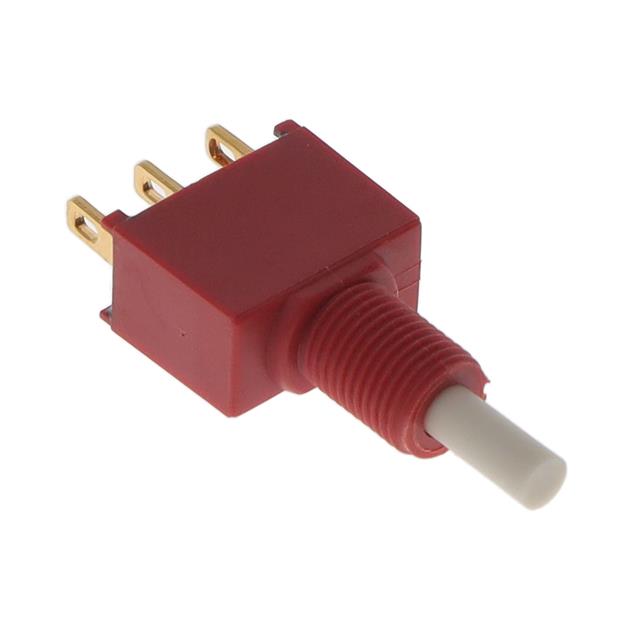

700ASP7B10M1RE

Active

E-Switch

SWITCH PUSH SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

700ASP7B10M1RE

Active

E-Switch

SWITCH PUSH SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	700ASP7B10M1RE

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

700ASP7 Series

Part	Type	Circuit	Ingress Protection	Current Rating (Amps)	Actuator Type	Termination Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color - Actuator/Cap	Switch Function	Electrical Life	Voltage Rating - AC	Voltage Rating - DC	Actuator Marking	Panel Cutout Dimensions [diameter]
E-Switch 700ASP7B21M2QE	Standard	SPDT	IP67 - Dust Tight Waterproof	3 A	Round Plunger	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	Through Hole	White	On-Mom	50000 Cycles	120 V	28 V	No Marking
E-Switch 700ASP7B21M6QE	Standard	SPDT	IP67 - Dust Tight Waterproof	3 A	Round Plunger	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	Through Hole Right Angle	White	On-Mom	50000 Cycles	120 V	28 V	No Marking
E-Switch 700ASP7B10M2RE	Standard	SPDT	IP67 - Dust Tight Waterproof	0.4 VA	Round Plunger	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	Panel Mount Rear	White	On-Mom	50000 Cycles	20 V	20 V	No Marking	0.25 in
E-Switch 700ASP7B10M6QE	Standard	SPDT	IP67 - Dust Tight Waterproof	3 A	Round Plunger	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	Panel Mount Rear Right Angle	White	On-Mom	50000 Cycles	120 V	28 V	No Marking	0.25 in
E-Switch 700ASP7B10M1RE	Standard	SPDT	IP67 - Dust Tight Waterproof	0.4 VA	Round Plunger	Solder Lug	Epoxy Sealed Terminals	-30 ░C	85 °C	Panel Mount Rear	White	On-Mom	50000 Cycles	20 V	20 V	No Marking	0.25 in
E-Switch 700ASP7B21M2RE	Standard	SPDT	IP67 - Dust Tight Waterproof	0.4 VA	Round Plunger	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	Through Hole	White	On-Mom	50000 Cycles	20 V	20 V	No Marking
E-Switch 700ASP7B10M1QE	Standard	SPDT	IP67 - Dust Tight Waterproof	3 A	Round Plunger	Solder Lug	Epoxy Sealed Terminals	-30 ░C	85 °C	Panel Mount Rear	White	On-Mom	50000 Cycles	120 V	28 V	No Marking	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.19
		10	$ 3.74
		108	$ 3.24
		1080	$ 2.72

Description

General part information

700ASP7 Series

Pushbutton Switch SPDT Standard Panel Mount, Rear
