0672-2-15-15-30-27-10-0

Active

Mill-Max Manufacturing Corp.

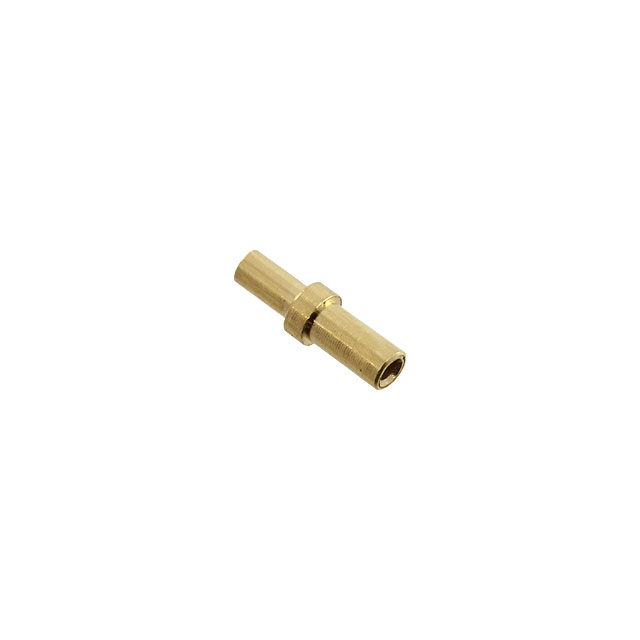

CONN PIN RCPT .015-.025 SWAGE

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 SWAGE

Technical Specifications

Parameters and characteristics for this part

Specification	0672-2-15-15-30-27-10-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.77 mm
Flange Diameter [diameter]	0.07 in
Length - Overall [x]	0.219 in
Length - Overall [x]	5.56 mm
Mounting Hole Diameter [diameter]	0.049 in
Mounting Hole Diameter [diameter]	1.24 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	2.67 mm
Socket Depth	0.105 in
Tail Type	No Tail
Termination	Swage

Part	Tail Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0672-2-15-01-30-14-10-0	No Tail	Beryllium Copper	10 Áin	0.25 Ám	Gold	0.049 in	1.24 mm	2.67 mm	0.105 in	0.219 in	5.56 mm	Swage	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C	1.77 mm	0.07 in
Mill-Max Manufacturing Corp. 0672-2-15-80-30-84-10-0	No Tail	Beryllium Copper	100 µin	2.54 µm	Tin	0.049 in	1.24 mm	2.67 mm	0.105 in	0.219 in	5.56 mm	Swage	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C	1.78 mm	0.07 in
Mill-Max Manufacturing Corp. 0672-2-15-80-30-14-10-0	No Tail	Beryllium Copper	10 Áin	0.25 Ám	Gold	0.049 in	1.24 mm	2.67 mm	0.105 in	0.219 in	5.56 mm	Swage	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C	1.78 mm	0.07 in
Mill-Max Manufacturing Corp. 0672-2-15-15-30-27-10-0	No Tail	Beryllium Copper	30 Áin	0.76 Ám	Gold	0.049 in	1.24 mm	2.67 mm	0.105 in	0.219 in	5.56 mm	Swage	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C	1.77 mm	0.07 in
Mill-Max Manufacturing Corp. 0672-2-15-01-30-27-10-0	No Tail	Beryllium Copper	30 Áin	0.76 Ám	Gold	0.049 in	1.24 mm	2.67 mm	0.105 in	0.219 in	5.56 mm	Swage	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C	1.77 mm	0.07 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Swage
