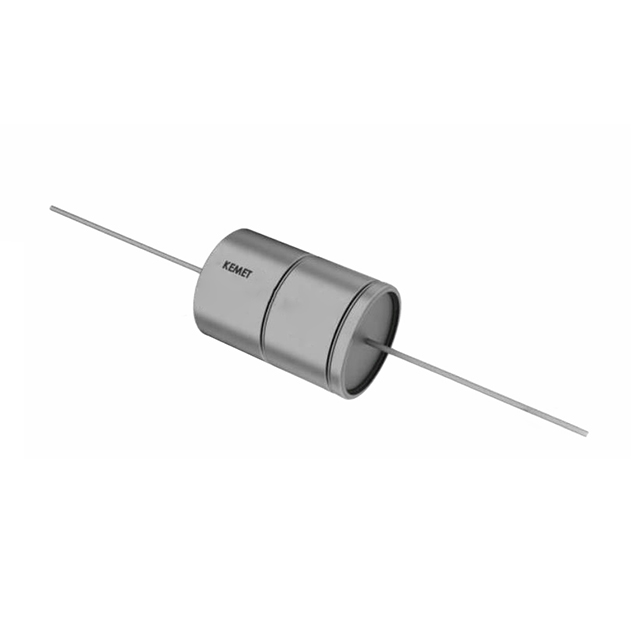

PHA225KLP4110QE4

Active

KEMET

CAP ALUM HYB 1100UF 10-30% 40V

Search across all available documentation for this part.

Active

KEMET

CAP ALUM HYB 1100UF 10-30% 40V

Technical Specifications

Parameters and characteristics for this part

Specification	PHA225KLP4110QE4

Applications	General Purpose
Capacitance	1100 µF
ESR (Equivalent Series Resistance)	80 mOhm
Features	High Vibration
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Can, Axial
Ripple Current @ High Frequency	40.9 A
Ripple Current @ Low Frequency	8.18 A
Size / Dimension [diameter]	0.717 in
Size / Dimension [diameter]	18.2 mm
Size / Dimension [x]	34.7 mm
Size / Dimension [x]	1.366 "
Tolerance [Max]	30 %
Tolerance [Min]	-10 %
Type	Hybrid
Voltage - Rated	40 V

Part	Voltage - Rated	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Lifetime @ Temp.	Features	Mounting Type	Tolerance [Min]	Tolerance [Max]	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Applications	Capacitance	Ripple Current @ High Frequency
KEMET PHA225KLP4110QE4	40 V	Hybrid	125 °C	-40 °C	Axial Can	0.717 in	34.7 mm	18.2 mm	1.366 "	3000 Hrs	High Vibration	Through Hole	-10 %	30 %	80 mOhm	8.18 A	General Purpose	1100 µF	40.9 A
KEMET PHA225KLP4110QE1	40 V	Hybrid	125 °C	-40 °C	Axial Can	0.717 in	34.7 mm	18.2 mm	1.366 "	3000 Hrs	High Vibration	Through Hole	-10 %	30 %	80 mOhm	8.18 A	General Purpose	1100 µF	40.9 A
