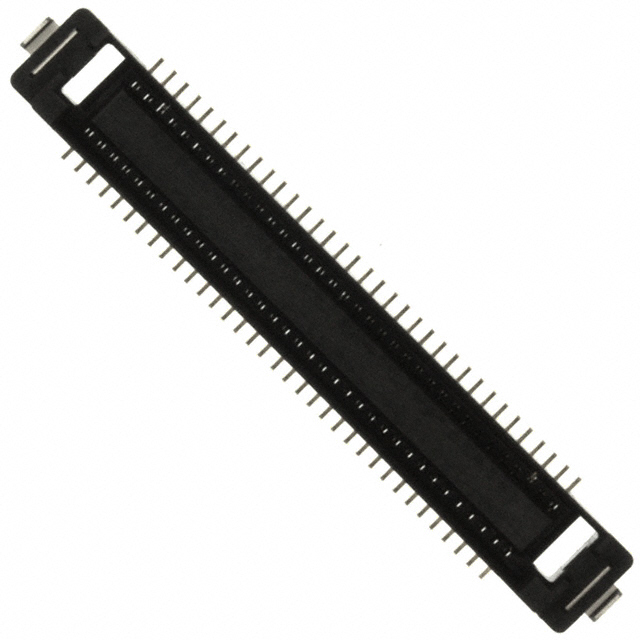

KX14-70K2DE

Active

JAE Electronics

0.8MM 2 70P VERTICAL WELDING SMD,P=0.8MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Search across all available documentation for this part.

Active

JAE Electronics

0.8MM 2 70P VERTICAL WELDING SMD,P=0.8MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	KX14-70K2DE

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	3.55 mm
Height Above Board	0.14 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Mated Stacking Heights	Height Above Board	Height Above Board	Height Above Board [z]
JAE Electronics KX14-70K2DE	Gold	4 Áin	0.1 Ám	Board Guide Solder Retention	Surface Mount	2	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	70	4 mm 5 mm 6 mm	3.55 mm	0.14 in
JAE Electronics KX14-70K8DE	Gold	4 in	0.1 m	Board Guide Solder Retention	Surface Mount	2	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	70		9.55 mm		0.376 in
JAE Electronics KX14-70K5DE	Gold	4 Áin	0.1 Ám	Board Guide Solder Retention	Surface Mount	2	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	70	7 mm 8 mm 9 mm	6.55 mm	0.258 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

70 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
