HW-SPAR3AN-SK-UNI-G

Obsolete

AMD

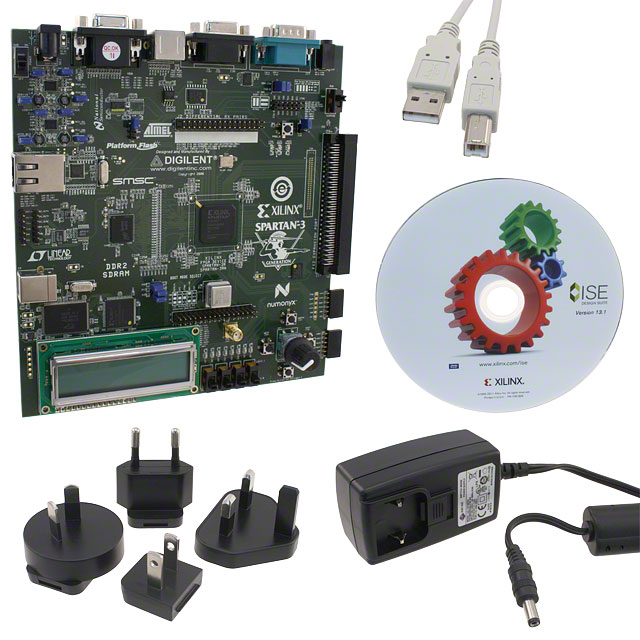

KIT STARTER SPARTAN-3 AN

Search across all available documentation for this part.

Obsolete

AMD

KIT STARTER SPARTAN-3 AN

Technical Specifications

Parameters and characteristics for this part

Specification	HW-SPAR3AN-SK-UNI-G

Contents	Cable(s), Board(s), Power Supply
For Use With/Related Products	XC3S700AN
Platform	Spartan-3AN FPGA Starter Kit UNI
Utilized IC / Part	XC3S700AN

Part	Mounting Type	Supplier Device Package	Number of LABs/CLBs	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Number of Gates	Number of I/O	Number of Logic Elements/Cells	Total RAM Bits	Utilized IC / Part	For Use With/Related Products	Platform	Contents
AMD XC3S700AN-4FGG484C	Surface Mount	484-FBGA (23x23)	1472	0 °C	85 °C	484-BBGA	700000	372	13248	368640
AMD XC3S700A-4FGG484I	Surface Mount	484-FBGA (23x23)	1472	-40 C	100 °C	484-BBGA	700000	372	13248	368640
AMD XC3S700AN-4FG484I	Surface Mount	484-FBGA (23x23)	1472	-40 C	100 °C	484-BBGA	700000	372	13248	368640
AMD XC3S700A-4FG484I	Surface Mount	484-FBGA (23x23)	1472	-40 C	100 °C	484-BBGA	700000	372	13248	368640
AMD XC3S700A-4FT256I	Surface Mount	256-FTBGA (17x17)	1472	-40 C	100 °C	256-LBGA	700000	161 I/O	13248	368640
AMD HW-SPAR3AN-SK-UNI-G											XC3S700AN	XC3S700AN	Spartan-3AN FPGA Starter Kit UNI	Board(s) Cable(s) Power Supply
AMD HW-SPAR3ADDR2-DK-UNI-G											XC3S700A	XC3S700A	Spartan-3A DDR2 SDRAM Interface	Board(s)
AMD XC3S700A-5FGG484C	Surface Mount	484-FBGA (23x23)	1472	0 °C	85 °C	484-BBGA	700000	372	13248	368640
AMD XC3S700A-4FG400I	Surface Mount	400-FBGA (21x21)	1472	-40 C	100 °C	400-BGA	700000	311	13248	368640
AMD XC3S700A-4FGG400C	Surface Mount	400-FBGA (21x21)	1472	0 °C	85 °C	400-BGA	700000	311	13248	368640

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Spartan-3AN FPGA Starter Kit UNI XC3S700AN Spartan®-3AN FPGA Evaluation Board
