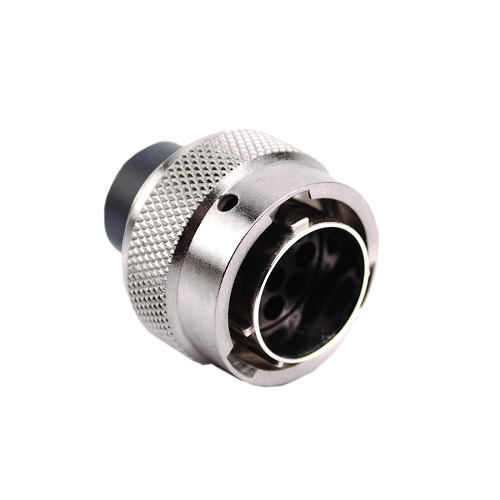

RT062448PNH

Active

Amphenol Sine Systems Corp

CONN PLUG HSG MALE 48POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG MALE 48POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	RT062448PNH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	48
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	48
Shell Size - Insert [Min]	24
Shielding	Shielded
Type	For Male Pins

Part	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shielding	Insert Material	Mounting Type	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Type	Note	Orientation	Material Flammability Rating	Contact Size	Housing Color	Type	Number of Positions	Fastening Type	Shell Material	Contact Shape	Connector Type
Amphenol Sine Systems Corp RT062448PNH-K
Amphenol Sine Systems Corp RT062448SNH-K
Amphenol Sine Systems Corp RT062448PNH	Nickel	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Shielded	Thermoplastic	Free Hanging (In-Line)	Coupling Nut	24	48	Crimp	Contacts Not Included	N	UL94 V-0	16	Silver	For Male Pins	48	Bayonet Lock	Zinc Alloy	Circular	Plug Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
