MS3108E22-14S
ActiveAmphenol Industrial Operations

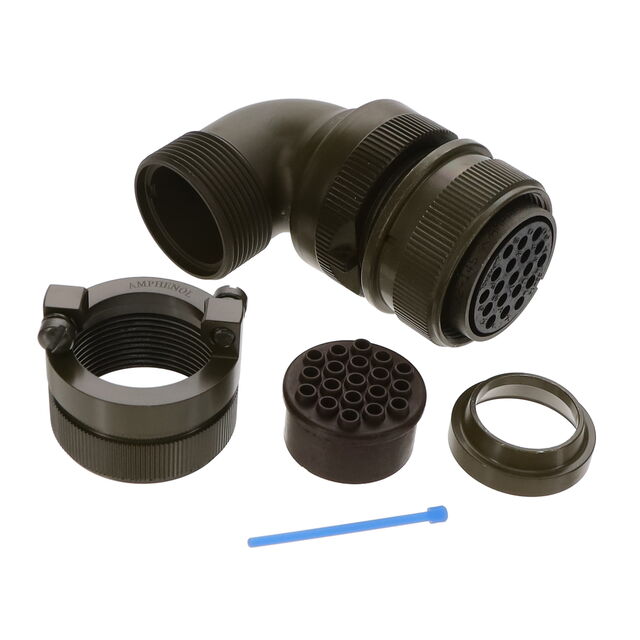

CONN PLUG FMALE 19P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E22-14S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 19P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108E22-14S | MS3108E22 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Cable Opening | - | 0.74 in |
| Cable Opening | - | 18.8 mm |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | - | 13 - 46 A |
| Features | Coupling Nut, Cable Clamp | Coupling Nut, Cable Clamp |
| Grade | - | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 19 | 2 - 19 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, X |
| Primary Material | Metal | Metal |
| Qualification | MIL-5015 | MIL-DTL-5015, MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 22-14 | 22-14, 22-2, 22-11 |
| Shell Size - Insert | - | 22 |
| Shell Size - Insert | - | 9 - 18 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 900 - 1750 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 76.78 | |
| 10 | $ 70.46 | |||
| 25 | $ 67.75 | |||
| 50 | $ 65.49 | |||
| 100 | $ 61.88 | |||
MS3108E22 Series
PLUG
| Part | Shell Material | Insert Material | Contact Finish - Mating | Connector Type | Grade | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Primary Material | Shell Finish | Color | Qualification | Applications | Contact Material | Features | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Ingress Protection | Number of Positions | Shielding | Cable Opening [diameter] | Cable Opening [diameter] | Current Rating (Amps) | Voltage Rating | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108E22-4P | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E22-6P | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E22-13P | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E22-24P | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E22-19P | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E22-24S | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E22-18S | Aluminum Alloy | Neoprene | Silver | Female Sockets, Plug | Military | Free Hanging (In-Line), Right Angle | -55 °C | 125 °C | N | Metal | Olive Drab Chromate over Cadmium | Olive Drab | MIL-DTL-5015 | Marine, Military | Copper Alloy | Cable Clamp, Coupling Nut | 22 | 18 | Environment Resistant | 8 | Unshielded | 0.74 in | 18.8 mm | 13 A | ||
Amphenol Industrial Operations MS3108E22-9PX | Aluminum Alloy | Neoprene | Silver | Male Pins, Plug | Free Hanging (In-Line), Right Angle | -55 °C | 125 °C | X | Metal | Olive Drab Chromate over Cadmium | Olive Drab | MIL-5015 | Marine, Military | Copper Alloy | 22 | 9 | Environment Resistant | Unshielded | 0.74 in | 18.8 mm | 1250 VAC, 1750 VDC | |||||
Amphenol Industrial Operations MS3108E22-14S | Aluminum Alloy | Neoprene | Silver | Female Sockets, Plug | Free Hanging (In-Line), Right Angle | -55 °C | 125 °C | N | Metal | Olive Drab Chromate over Cadmium | Olive Drab | MIL-5015 | Marine, Military | Copper Alloy | Cable Clamp, Coupling Nut | Environment Resistant | 19 | Unshielded | 22-14 | |||||||
Amphenol Industrial Operations MS3108E22-21S |
Description
General part information
MS3108E22 Series
19 Position Circular Connector Plug, Female Sockets Solder Cup
