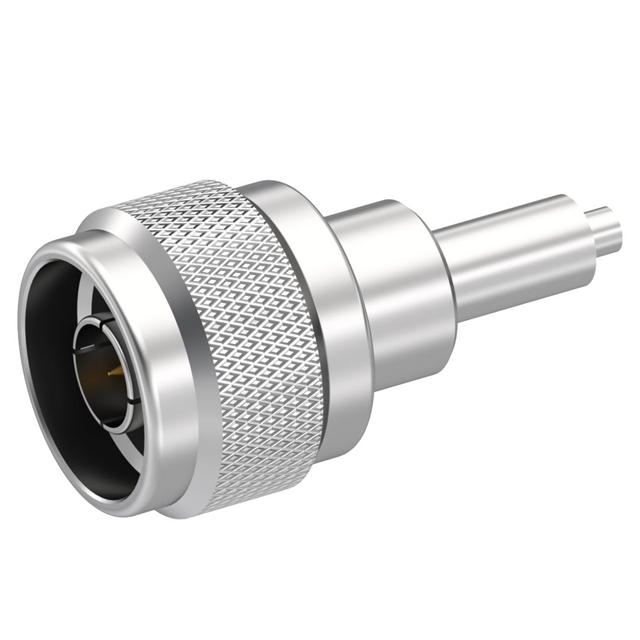

R161072000

Active

Radiall USA, Inc.

N M STR CR 2.6/50S+D C50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N M STR CR 2.6/50S+D C50

Technical Specifications

Parameters and characteristics for this part

Specification	R161072000

Body Material	Brass
Cable Group	RD-316, RG-174
Cable Group	316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 Contact, 1 Insulator, 1 Braid Clamp
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	Number of Ports	Body Finish	Center Contact Material	Body Material	Shield Termination	Mating Cycles	Center Contact Plating	Connector Style	Connector Type	Contact Termination	Housing Color	Impedance	Dielectric Material	Voltage Rating	Cable Group [custom]	Cable Group [custom]	Frequency - Max [Max]	Cable Group	Ingress Protection	Cable Group	Includes
Radiall USA, Inc. R161075000W	Free Hanging (In-Line)	155 °C	-55 °C	0.15 dB	1	White Bronze	Brass	Brass	Crimp	500	Gold	N Type	Male Pin Plug	Crimp	Silver	50 Ohms	Polytetrafluoroethylene (PTFE)	1400 V	213	RG-165	11 GHz
Radiall USA, Inc. R161075060W	Free Hanging (In-Line)	155 °C	-55 °C	0.15 dB	1	White Bronze	Brass	Brass	Crimp	500	Gold	N Type	Male Pin Plug	Crimp	Silver	50 Ohms	Polytetrafluoroethylene (PTFE)	1400 V			11 GHz	LMR-400	IP65 - Dust Tight Water Resistant
Radiall USA, Inc. R161072000	Free Hanging (In-Line)	155 °C	-55 °C		1		Brass	Brass	Crimp	500	Gold	N Type	Male Pin Plug	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	250 VDC			11 GHz	RD-316 RG-174		316	1 Braid Clamp 1 Connector 1 Contact 1 Ferrule 1 Insulator
Radiall USA, Inc. R161075060	Free Hanging (In-Line)	155 °C	-55 °C	0.15 dB	1	White Bronze	Brass	Brass	Crimp	500	Gold	N Type	Male Pin Plug	Crimp	Silver	50 Ohms	Polytetrafluoroethylene (PTFE)	1400 V			11 GHz	LMR-400	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 12.68

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
