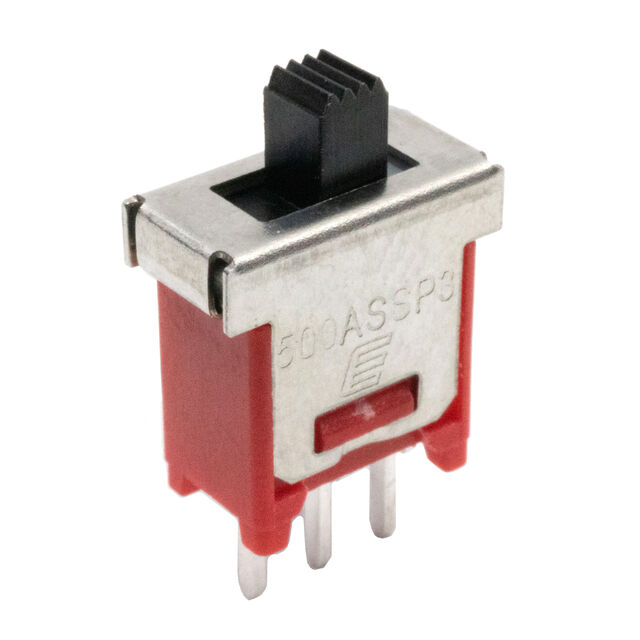

500ASSP3M2QE

Active

E-Switch

SWITCH SLIDE SPDT 3A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SLIDE SPDT 3A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Circuit	Voltage Rating - AC	Voltage Rating - DC	Actuator Length [x]	Electrical Life	Termination Style	Contact Timing	Switch Function	Features	Contact Material	Actuator Material	Actuator Type	Switch Travel	Mechanical Life
E-Switch 500ASSP3M6RE	Gold	-30 ░C	85 °C	0.4 VA	Through Hole Right Angle	SPDT	20 V	20 V	3.1 mm	30000 Cycles	PC Pin	Not Specified	On-Off-On	Epoxy Sealed Terminals	Copper Alloy	Nylon Polyamide (PA)	Standard	3.05 mm	30000 Steps
E-Switch 500ASSP3M2QE	Silver	-30 ░C	85 °C	3 A	Through Hole	SPDT	120 V	28 V	3.1 mm	30000 Cycles	PC Pin	Not Specified	On-Off-On	Epoxy Sealed Terminals	Copper Alloy	Nylon Polyamide (PA)	Standard	3.05 mm	30000 Steps
E-Switch 500ASSP3M2RE	Gold	-30 ░C	85 °C	0.4 VA	Through Hole	SPDT	20 V	20 V	3.1 mm	30000 Cycles	PC Pin	Not Specified	On-Off-On	Epoxy Sealed Terminals	Copper Alloy	Nylon Polyamide (PA)	Standard	3.05 mm	30000 Steps
E-Switch 500ASSP3SM6QE	Silver	-30 ░C	85 °C	3 A	Surface Mount Right Angle	SPDT	120 V	28 V	3.1 mm	30000 Cycles	Gull Wing	Not Specified	On-Off-On	Epoxy Sealed Terminals	Copper Alloy	Nylon Polyamide (PA)	Standard	3.05 mm	30000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPDT Through Hole
