1411149

Active

Phoenix Contact

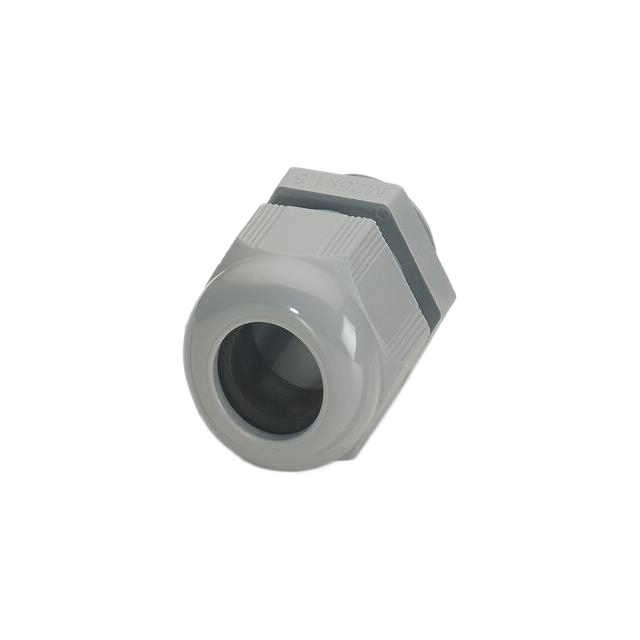

CABLE GLAND 30-38MM PG42

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 30-38MM PG42

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411149	G-INS-PG42 Series

Color	Gray	Gray
Includes	Seal	Seal
Ingress Protection	IP66/IP68	IP66/IP68, IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	38 mm	38 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.496 in	1.496 in
Outside Cable Diameter (Min) [Min] [diameter]	1.181 in	1.181 in
Outside Cable Diameter (Min) [Min] [diameter]	30 mm	30 mm
Thread Length	13 mm	13 mm
Thread Length	0.512 in	0.512 in
Thread Size	PG42	PG42
Type	Cable Gland	Cable Gland

CABLE GLAND 30-38MM PG42

Part	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Includes	Color	Type	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Phoenix Contact 1411149	PG42	38 mm	1.496 in	Polyamide (PA), Nylon	Seal	Gray	Cable Gland	13 mm	0.512 in	100 °C	-40 °C	IP66/IP68	1.181 in	30 mm
Phoenix Contact 1424493	PG42	38 mm	1.496 in	Polyamide (PA), Nylon	Seal	Gray	Cable Gland	13 mm	0.512 in	100 °C	-40 °C	IP68 - Dust Tight, Waterproof	1.181 in	30 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.82

General part information

Cable Gland Polyamide (PA), Nylon PG42 Gray
