AXE520127A

Active

Panasonic Electric Works

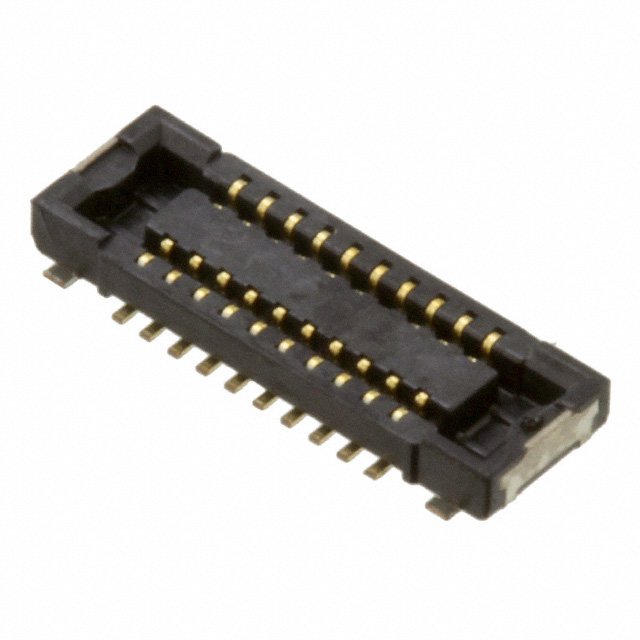

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE520127A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	1 mm, 0.8 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board [z]	Height Above Board [z]	Connector Type	Number of Positions	Mated Stacking Heights	Mounting Type	Contact Finish	Number of Rows	Features	Pitch [x]	Pitch [x]
Panasonic Electric Works AXE520127A	0.03 in	0.75 mm	Socket Center Strip Contacts	20	0.8 mm 1 mm	Surface Mount	Gold	2	Solder Retention	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Connector Socket, Center Strip Contacts Surface Mount Gold
