34414 010500

Active

Belden Inc.

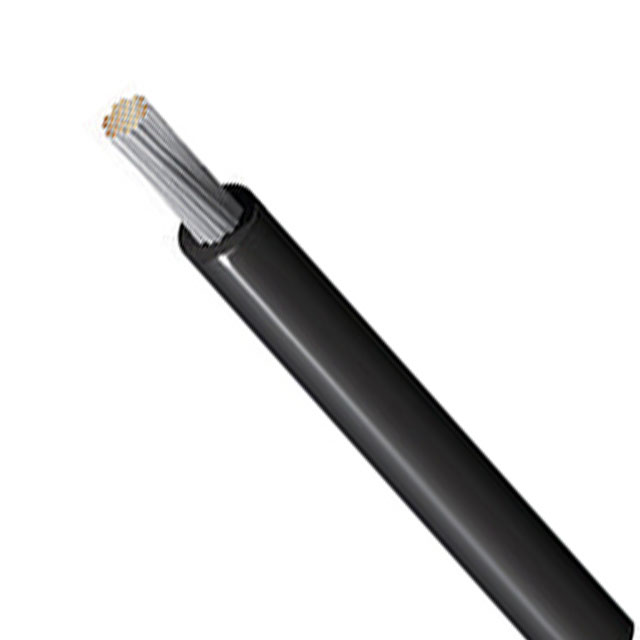

HOOK-UP STRND 14AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 14AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	34414 010500

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.17 in
Jacket (Insulation) Diameter [diameter]	4.32 mm
Jacket (Insulation) Material	Chlorosulfonated Polyethylene (CSPE)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.22 mm
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 3191
Voltage	600 V
Wire Gauge	13.5 AWG

Part	Voltage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Ratings	Wire Gauge	Jacket Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material
Belden Inc. 34414 008500	600 V	Chlorosulfonated Polyethylene (CSPE)	41	30 AWG	Hook-Up	UL Style 3191	13.5 AWG	Gray	Oil Resistant	-30 ░C	105 ░C	500 '	152.4 m	0.17 in	4.32 mm	0.048 in	1.22 mm	Copper Tinned
Belden Inc. 34414 010100	600 V	Chlorosulfonated Polyethylene (CSPE)	41	30 AWG	Hook-Up	UL Style 3191	13.5 AWG	Black	Oil Resistant	-30 ░C	105 ░C	100 ft	30.5 m	0.17 in	4.32 mm	0.048 in	1.22 mm	Copper Tinned
Belden Inc. 34414 010500	600 V	Chlorosulfonated Polyethylene (CSPE)	41	30 AWG	Hook-Up	UL Style 3191	13.5 AWG	Black	Oil Resistant	-30 ░C	105 ░C	500 '	152.4 m	0.17 in	4.32 mm	0.048 in	1.22 mm	Copper Tinned
Belden Inc. 34414 002500	600 V	Chlorosulfonated Polyethylene (CSPE)	41	30 AWG	Hook-Up	UL Style 3191	13.5 AWG	Red	Oil Resistant	-30 ░C	105 ░C	500 '	152.4 m	0.17 in	4.32 mm	0.048 in	1.22 mm	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.71

General part information

14 AWG Hook-Up Wire 41/30 Black 600V 500.0' (152.4m)
