SF8982-18SG-530

Active

Conxall/Switchcraft

CONN RCPT FMALE 18P SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 18P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SF8982-18SG-530	SF8982 Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening [custom]	0.33 in	0.33 in
Cable Opening [custom]	8.38 mm	8.38 mm
Color	Black, Silver	Black, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	18	18
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass	Brass
Shielding	Shielded	Shielded

CONN RCPT FMALE 18P SOLDER CUP

Part	Insert Material	Shell Material	Orientation	Mounting Type	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating	Shell Finish	Contact Finish - Mating	Number of Positions	Contact Material	Shielding	Color	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Features	Primary Material
Conxall/Switchcraft SF8982-18SG-530	Polybutylene Terephthalate (PBT)	Brass	Keyed	Free Hanging (In-Line)	Receptacle, Female Sockets	0.33 in	8.38 mm	Nylon, Polyamide (PA)	Nickel	Gold	18	Copper Alloy	Shielded	Black, Silver	-40 °C	120 °C	IP66/IP68	Backshell, Cable Clamp	Metal
Conxall/Switchcraft SF8982-18PG-530	Polybutylene Terephthalate (PBT)	Brass	Keyed	Free Hanging (In-Line)	Male Pins, Receptacle	0.33 in	8.38 mm	Nylon, Polyamide (PA)	Nickel	Gold	18	Copper Alloy	Shielded	Black, Silver	-40 °C	120 °C	IP66/IP68	Backshell, Cable Clamp	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.45

General part information

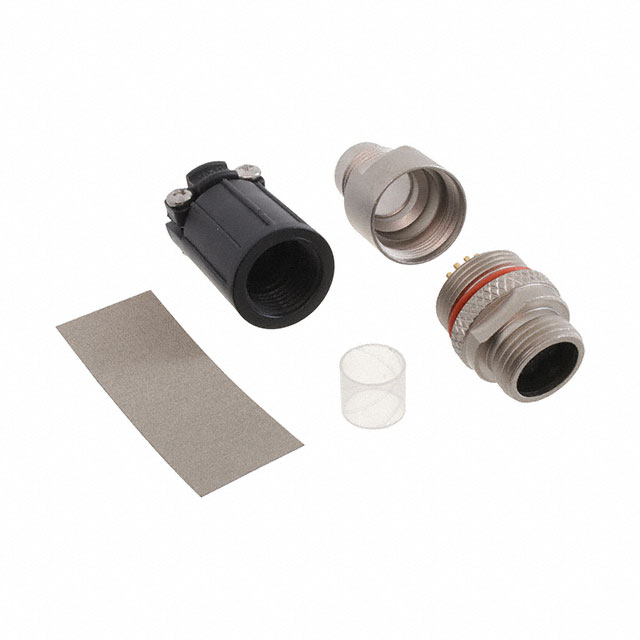

18 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

No documents available
