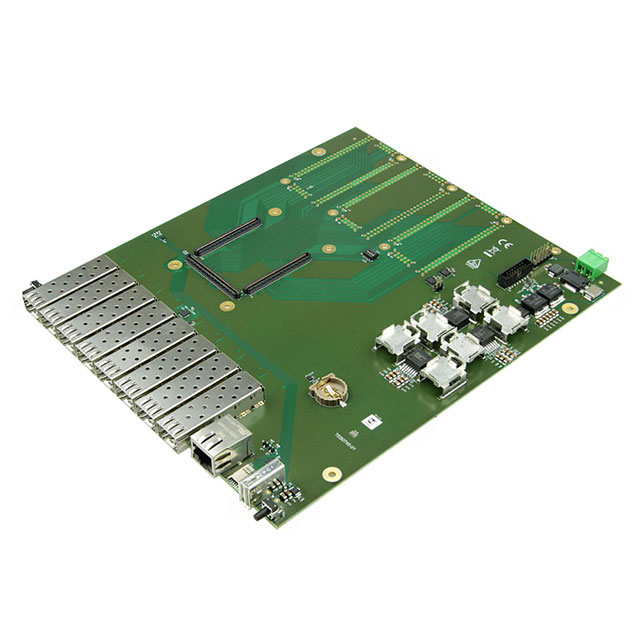

TEB0745-02

Trenz Electronic

SOM CARRIER BOARD ZYNQ TE0745

Search across all available documentation for this part.

Trenz Electronic

SOM CARRIER BOARD ZYNQ TE0745

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 302.00

General part information

TE0745 Zynq-7000 AP SoC Carrier TE0745 Zynq®-7000 FPGA Evaluation Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TEB0745-02	TE0745 Series

	-	-
Co-Processor	-	Z-7030
Co-Processor	-	Zynq-7000, Zynq-7000 (Z-7035)
Connector Type	-	Samtec ST5
Contents	Board(s)	Board(s)
Core Processor	-	Xilinx Zynq XC7Z030-2FBG676I, ARM® Cortex®-A9, Xilinx Zynq XC7Z045-1FBG676C
Flash Size	-	32 - 64 MB
For Use With/Related Products	TE0745	TE0745
Module/Board Type	-	MPU Core, FPGA, MCU
Operating Temperature	-	70 - 85 °C
Operating Temperature	-	-40 - 0 °C
Platform	TE0745 Zynq-7000 AP SoC Carrier	TE0745 Zynq-7000 AP SoC Carrier
RAM Size	-	1 GB
Size / Dimension	-	2.99 in
Size / Dimension	-	76 mm
Size / Dimension	-	52 mm
Size / Dimension	-	2.05 "
Suggested Programming Environment	Vivado	Vivado
Utilized IC / Part	TE0745	TE0745

SOM 1GB DDR3 XC7Z030-2FBG676I

Part	RAM Size	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Connector Type	Flash Size	Core Processor	Operating Temperature [Max]	Operating Temperature [Min]	Module/Board Type	Co-Processor	Co-Processor	For Use With/Related Products	Contents	Platform	Utilized IC / Part	Suggested Programming Environment
Trenz Electronic TE0745-02-72I11-A	1 GB	2.99 in	76 mm	52 mm	2.05 "	Samtec ST5	64 MB	Xilinx Zynq XC7Z030-2FBG676I	85 °C	-40 °C	MPU Core
Trenz Electronic TE0745-02-92I11-A
Trenz Electronic TE0745-02-71I11-A	1 GB	2.99 in	76 mm	52 mm	2.05 "	Samtec ST5	64 MB	ARM® Cortex®-A9	85 °C	-40 °C	FPGA, MCU	Z-7030	Zynq-7000
Trenz Electronic TEB0745-02														TE0745	Board(s)	TE0745 Zynq-7000 AP SoC Carrier	TE0745	Vivado
Trenz Electronic TE0745-02-81C11-A	1 GB	2.99 in	76 mm	52 mm	2.05 "	Samtec ST5	32 MB	ARM® Cortex®-A9	85 °C	-40 °C	FPGA, MCU		Zynq-7000 (Z-7035)
Trenz Electronic TE0745-02-91C11-A	1 GB	2.99 in	76 mm	52 mm	2.05 "	Samtec ST5	64 MB	Xilinx Zynq XC7Z045-1FBG676C	70 °C	0 °C	MPU Core
