TC-200-SM-RP

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP/REVERSE PO

Deep-Dive with AI

Search across all available documentation for this part.

TC-200-SM-RP

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP/REVERSE PO

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC-200-SM-RP	TC-200 Series

	-	-
Body Finish	-	White Bronze, Nickel, Silver
Body Material	Stainless Steel	Brass, Stainless Steel
Cable Group	LMR-200	LMR-200
Center Contact Material	Brass	Beryllium Copper, Brass, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	RP-SMA	TNC, SMA, RP-SMA, Mini, UHF, BNC, RP-N Type, N Type, FME
Connector Type	Plug, Female Socket	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM)
Fastening Type	-	Bayonet Lock
Frequency - Max [Max]	2.5 GHz	1 - 6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	-	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 ░C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	750 VDC	500 - 750 VDC

TC-200 Series

CONN

Part	Shield Termination	Body Finish	Cable Group	Housing Color	Connector Style	Body Material	Number of Ports	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Material	Dielectric Material	Impedance	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Voltage Rating	Fastening Type
Amphenol Times Microwave Systems TC-200-TM-X
Amphenol Times Microwave Systems TC-200-TF-X	Crimp	White Bronze	LMR-200	Silver	TNC	Brass	1	Free Hanging (In-Line)	-65 ░C	165 °C	Female Socket, Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	6000 MHz	Solder	Gold
Amphenol Times Microwave Systems TC-200-SM-SS-X	Crimp		LMR-200	Silver	SMA	Stainless Steel	1	Free Hanging (In-Line)	-40 °C	85 °C	Male Pin, Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	2.5 GHz	Solder	Gold
Amphenol Times Microwave Systems TC-200-SM-RP	Crimp		LMR-200	Silver	RP-SMA	Stainless Steel	1	Free Hanging (In-Line)	-40 °C	85 °C	Female Socket, Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	2.5 GHz	Solder	Gold	750 VDC
Amphenol Times Microwave Systems TC-200-MUHF	Crimp	Nickel	LMR-200	Silver	Mini, UHF	Brass	1	Free Hanging (In-Line)	-40 °C	85 °C	Male Pin, Plug	Brass	Polyoxymethylene (POM)	50 Ohms	2.5 GHz	Solder	Gold
Amphenol Times Microwave Systems TC-200-SM-RA-D
Amphenol Times Microwave Systems TC-200-BM-X	Crimp	White Bronze	LMR-200	Silver	BNC	Brass	1	Free Hanging (In-Line)	-65 ░C	165 °C	Male Pin, Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	4 GHz	Solder	Gold		Bayonet Lock
Amphenol Times Microwave Systems TC-200-TMC	Clamp	Silver	LMR-200	Silver	TNC	Brass	1	Free Hanging (In-Line)	-40 °C	85 °C	Male Pin, Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	3 GHz	Solder	Gold	500 V
Amphenol Times Microwave Systems TC-200-NM-RP	Crimp	Nickel	LMR-200	Silver	RP-N Type	Brass	1	Free Hanging (In-Line)	-40 °C	85 °C	Female Socket, Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	1 GHz	Solder	Gold
Amphenol Times Microwave Systems TC-200-NMH-X	Crimp	White Bronze	LMR-200	Silver	N Type	Brass	1	Free Hanging (In-Line)	-65 ░C	165 °C	Male Pin, Plug	Brass, Phosphor Bronze	Polytetrafluoroethylene (PTFE)	50 Ohms	6000 MHz	Solder	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 27.95
		10	$ 24.48
		25	$ 23.42
		50	$ 22.66
		100	$ 21.91
		250	$ 20.70

Description

General part information

TC-200 Series

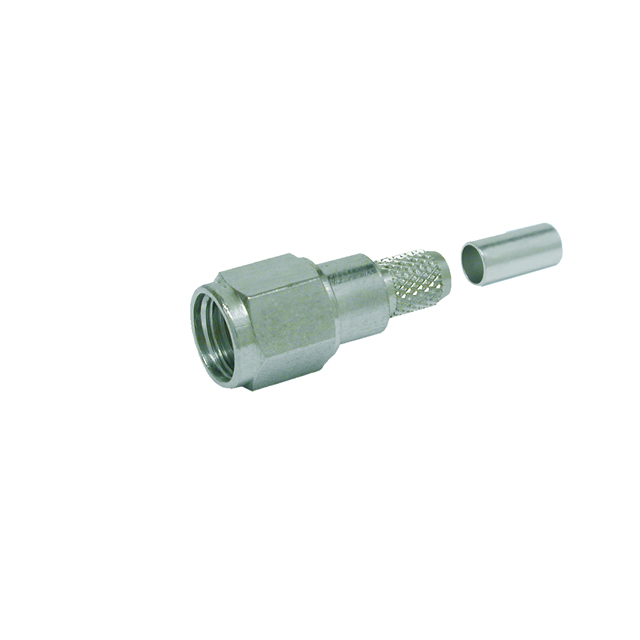

RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
