TC-200-TF-X

Active

Amphenol Times Microwave Systems

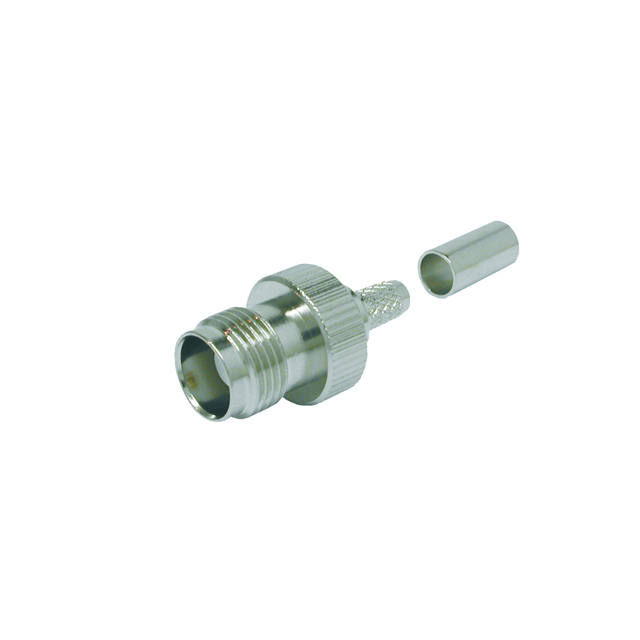

TNC-FEMALE (JACK) CRIMP CONNECTO

Deep-Dive with AI

Search across all available documentation for this part.

TC-200-TF-X

Active

Amphenol Times Microwave Systems

TNC-FEMALE (JACK) CRIMP CONNECTO

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 25.39

Description

General part information

TC-200 Series

TNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC-200-TF-X	TC-200 Series

	-	-
Body Finish	White Bronze	White Bronze, Nickel, Silver
Body Material	Brass	Brass, Stainless Steel
Cable Group	LMR-200	LMR-200
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	TNC	TNC, SMA, RP-SMA, Mini, UHF, BNC, RP-N Type, N Type, FME
Connector Type	Female Socket, Jack	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM)
Fastening Type	-	Bayonet Lock
Frequency - Max [Max]	6000 MHz	1 - 6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	-	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	-	500 - 750 VDC

TC-200 Series

CONN

Part	Shield Termination	Body Finish	Cable Group	Housing Color	Connector Style	Body Material	Number of Ports	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Material	Dielectric Material	Impedance	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Voltage Rating	Fastening Type
Amphenol Times Microwave Systems TC-200-TM-X
Amphenol Times Microwave Systems TC-200-TF-X	Crimp	White Bronze	LMR-200	Silver	TNC	Brass	1	Free Hanging (In-Line)	-65 ░C	165 °C	Female Socket, Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	6000 MHz	Solder	Gold
Amphenol Times Microwave Systems TC-200-SM-SS-X	Crimp		LMR-200	Silver	SMA	Stainless Steel	1	Free Hanging (In-Line)	-40 °C	85 °C	Male Pin, Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	2.5 GHz	Solder	Gold
Amphenol Times Microwave Systems TC-200-SM-RP	Crimp		LMR-200	Silver	RP-SMA	Stainless Steel	1	Free Hanging (In-Line)	-40 °C	85 °C	Female Socket, Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	2.5 GHz	Solder	Gold	750 VDC
Amphenol Times Microwave Systems TC-200-MUHF	Crimp	Nickel	LMR-200	Silver	Mini, UHF	Brass	1	Free Hanging (In-Line)	-40 °C	85 °C	Male Pin, Plug	Brass	Polyoxymethylene (POM)	50 Ohms	2.5 GHz	Solder	Gold
Amphenol Times Microwave Systems TC-200-SM-RA-D
Amphenol Times Microwave Systems TC-200-BM-X	Crimp	White Bronze	LMR-200	Silver	BNC	Brass	1	Free Hanging (In-Line)	-65 ░C	165 °C	Male Pin, Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	4 GHz	Solder	Gold		Bayonet Lock
Amphenol Times Microwave Systems TC-200-TMC	Clamp	Silver	LMR-200	Silver	TNC	Brass	1	Free Hanging (In-Line)	-40 °C	85 °C	Male Pin, Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	3 GHz	Solder	Gold	500 V
Amphenol Times Microwave Systems TC-200-NM-RP	Crimp	Nickel	LMR-200	Silver	RP-N Type	Brass	1	Free Hanging (In-Line)	-40 °C	85 °C	Female Socket, Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	1 GHz	Solder	Gold
Amphenol Times Microwave Systems TC-200-NMH-X	Crimp	White Bronze	LMR-200	Silver	N Type	Brass	1	Free Hanging (In-Line)	-65 ░C	165 °C	Male Pin, Plug	Brass, Phosphor Bronze	Polytetrafluoroethylene (PTFE)	50 Ohms	6000 MHz	Solder	Gold
