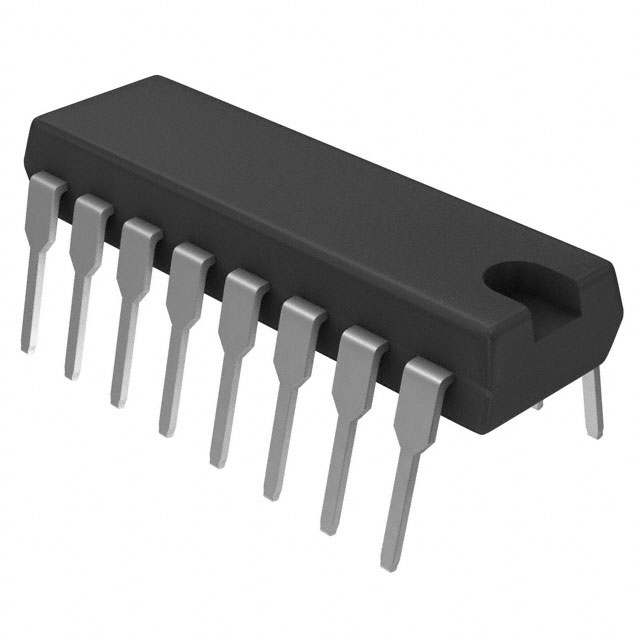

4116R-1-513

Active

Bourns Inc.

RES ARRAY 8 RES 51K OHM 16DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4116R-1-513

Active

Bourns Inc.

RES ARRAY 8 RES 51K OHM 16DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4116R-1-513

Circuit Type	Isolated
Height - Seated (Max) [Max]	4.69 mm
Height - Seated (Max) [Max]	0.185 "
Mounting Type	Through Hole
Number of Pins	16
Number of Resistors	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0.3 in
Package / Case	16-DIP
Package / Case	7.62 mm
Power Per Element	250 mW
Resistance (Ohms)	51 kOhms
Resistor-Ratio-Drift	50 ppm/°C
Size / Dimension [x]	0.865 in
Size / Dimension [x]	21.97 mm
Size / Dimension [y]	7.62 mm
Size / Dimension [y]	0.3 "
Supplier Device Package	16-DIP
Temperature Coefficient	100 ppm/°C
Tolerance	2 %

4116R Series

...

Part	Circuit Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Number of Pins	Number of Resistors	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance (Ohms)	Power Per Element	Temperature Coefficient	Package / Case	Package / Case	Package / Case	Tolerance	Resistor-Ratio-Drift	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Resistance (Ohms)
Bourns Inc. 4116R-2-121	Bussed	16-DIP	-55 °C	125 °C	16	15	4.69 mm	0.185 "	120 Ohms	125 mW	100 ppm/°C	0.3 in	16-DIP	7.62 mm	2 %	50 ppm/°C	Through Hole	0.865 in	21.97 mm	7.62 mm	0.3 "
Bourns Inc. 4116R-1-331LF	Isolated	16-DIP	-55 °C	125 °C	16	8	4.69 mm	0.185 "	330 Ohms	250 mW	100 ppm/°C	0.3 in	16-DIP	7.62 mm	2 %	50 ppm/°C	Through Hole	0.865 in	21.97 mm	7.62 mm	0.3 "
Bourns Inc. 4116R-1-380	Isolated	16-DIP	-55 °C	125 °C	16	8	4.69 mm	0.185 "	38 Ohms	250 mW	250 ppm/°C	0.3 in	16-DIP	7.62 mm	1 Ohm	50 ppm/°C	Through Hole	0.865 in	21.97 mm	7.62 mm	0.3 "
Bourns Inc. 4116R-3-681/681LF	Dual Terminator	16-DIP	-55 °C	125 °C	16	28	4.69 mm	0.185 "	680 Ohms	125 mW	100 ppm/°C	0.3 in	16-DIP	7.62 mm	2 %	50 ppm/°C	Through Hole	0.865 in	21.97 mm	7.62 mm	0.3 "
Bourns Inc. 4116R-1-472LF	Isolated	16-DIP	-55 °C	125 °C	16	8	4.69 mm	0.185 "		250 mW	100 ppm/°C	0.3 in	16-DIP	7.62 mm	2 %	50 ppm/°C	Through Hole	0.865 in	21.97 mm	7.62 mm	0.3 "	4.7k
Bourns Inc. 4116R-1-513	Isolated	16-DIP	-55 °C	125 °C	16	8	4.69 mm	0.185 "	51 kOhms	250 mW	100 ppm/°C	0.3 in	16-DIP	7.62 mm	2 %	50 ppm/°C	Through Hole	0.865 in	21.97 mm	7.62 mm	0.3 "
Bourns Inc. 4116R-3-161/241LF	Dual Terminator	16-DIP	-55 °C	125 °C	16	28	4.69 mm	0.185 "	160 Ohms 240 Ohms	125 mW	100 ppm/°C	0.3 in	16-DIP	7.62 mm	2 %	50 ppm/°C	Through Hole	0.865 in	21.97 mm	7.62 mm	0.3 "
Bourns Inc. 4116R-2-472LF	Bussed	16-DIP	-55 °C	125 °C	16	15	4.69 mm	0.185 "		125 mW	100 ppm/°C	0.3 in	16-DIP	7.62 mm	2 %	50 ppm/°C	Through Hole	0.865 in	21.97 mm	7.62 mm	0.3 "	4.7k
Bourns Inc. 4116R-1-602	Isolated	16-DIP	-55 °C	125 °C	16	8	4.69 mm	0.185 "		250 mW	100 ppm/°C	0.3 in	16-DIP	7.62 mm	2 %	50 ppm/°C	Through Hole	0.865 in	21.97 mm	7.62 mm	0.3 "
Bourns Inc. 4116R-1-273LF	Isolated	16-DIP	-55 °C	125 °C	16	8	4.69 mm	0.185 "	27000 Ohms	250 mW	100 ppm/°C	0.3 in	16-DIP	7.62 mm	2 %	50 ppm/°C	Through Hole	0.865 in	21.97 mm	7.62 mm	0.3 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 1.03

Description

General part information

4116R Series

51k Ohm ±2% 250mW Power Per Element Isolated 8 Resistor Network/Array ±100ppm/°C 16-DIP (0.300", 7.62mm)
