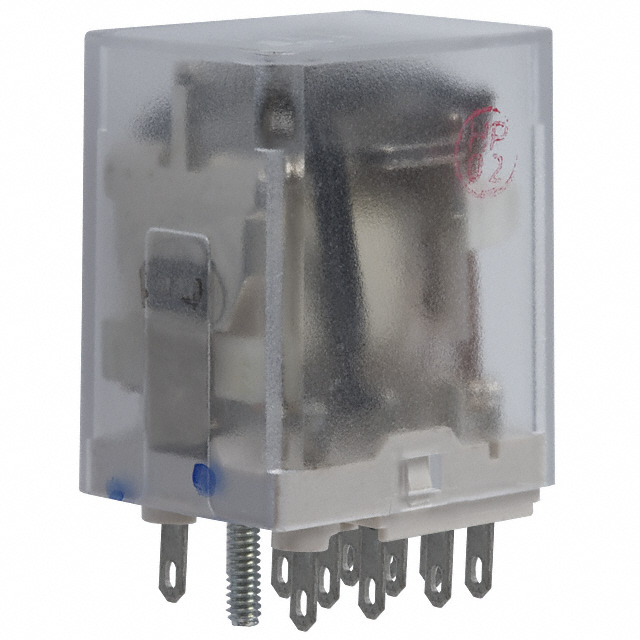

KHU-17D11-12
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 4PDT 3A 12V
Deep-Dive with AI
Search across all available documentation for this part.
KHU-17D11-12
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 4PDT 3A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KHU-17D11-12 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 75 mA |
| Coil Insulation | Class B |
| Coil Resistance | 160 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 3 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 9 VDC |
| Operate Time | 13 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Switching Voltage | 240 VAC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KHU-17D Series
General Purpose Relay 4PDT (4 Form C) 12VDC Coil Socketable
