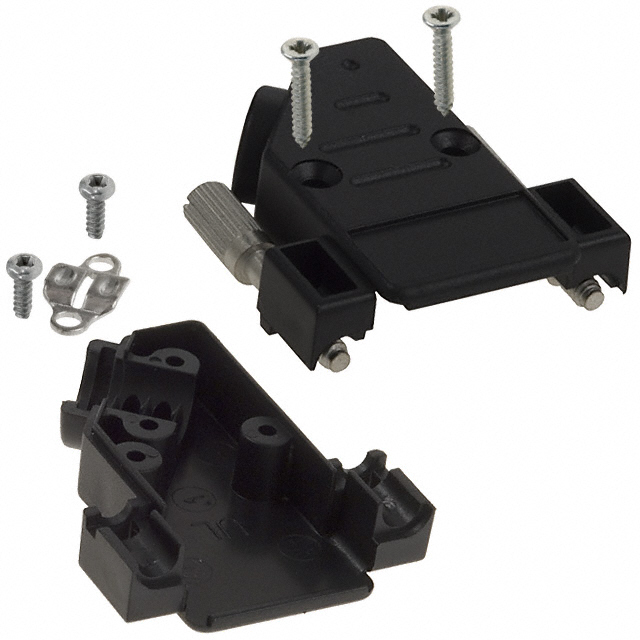

974-009-010R011 - 974-009-010-011, 974-009-010R011

974-009-010R011

Active
MH Connectors

CONN BACKSHELL 9POS 40DEG BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+3
974-009-010R011 - 974-009-010-011, 974-009-010R011

974-009-010R011

Active
MH Connectors

CONN BACKSHELL 9POS 40DEG BLACK

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+3

Technical Specifications

Parameters and characteristics for this part

Specification974-009-010R011
Accessory TypeTwo Piece Backshell
Cable Exit40 °
Cable TypeRound
ColorBlack
Compatible D-Sub SizeHD15pos, 9pos
Compatible Shell SizeE
FeaturesMating Screws 4-40
HardwareAssembly Hardware, Strain Relief
MaterialAcrylonitrile Butadiene Styrene (ABS)
Number of Positions9
Primary MaterialPlastic
ShieldingUnshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.97
10$ 4.52
25$ 4.28
50$ 4.18
100$ 3.98
300$ 3.48
500$ 3.38
1000$ 2.89
2500$ 2.69
LCSCPiece 1$ 6.84
200$ 2.73
500$ 2.64
1000$ 2.59
NewarkEach 100$ 4.24
250$ 3.88
500$ 3.61
1000$ 3.39

Description

General part information

974-009 Series

9 Position Two Piece Backshell Connector Black 40° Unshielded
