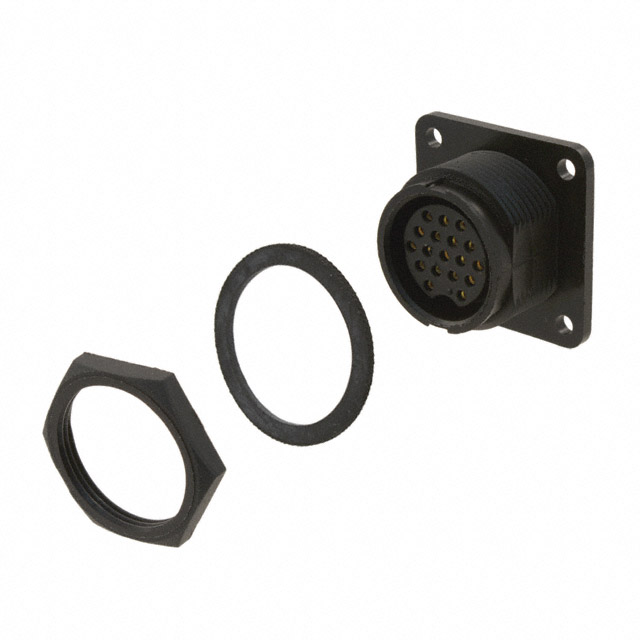

14282-18SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 18P SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 18P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	14282-18SG-300

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut, Flange
Number of Positions	18
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

CONN RCPT FMALE 18P SOLDER CUP

Part	Number of Positions	Voltage Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Orientation	Mounting Feature	Shielding	Primary Material	Color	Contact Material	Ingress Protection	Contact Finish - Mating
Conxall/Switchcraft 14282-18SG-300	18	600 V	Receptacle, Female Sockets	-40 °C	115 °C	Bayonet Lock	Keyed	Bulkhead - Front Side Nut, Flange	Unshielded	Plastic	Black	Brass	Weathertight	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Female Sockets Solder Cup
