M7VWK-3710J

Active

D-SUB CABLE MMU37K/MC37G/MFU37K

Search across all available documentation for this part.

Active

D-SUB CABLE MMU37K/MC37G/MFU37K

Technical Specifications

Parameters and characteristics commom to parts in this series

D-SUB CABLE MMU15K/MC16M/MFU15K

Part	Contact Finish	Length	Length	Shielding	1st Connector	Contact Finish Thickness	Contact Finish Thickness	Color	2nd Connector	Number of Positions	Type
3M M7VWK-1506R	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin	Multiple, Ribbon	Plug, Male Pins	15	DB15
3M M7VWK-5006R	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin	Multiple, Ribbon	Plug, Male Pins	50	DB50
3M M7VWK-0906J	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin		Plug, Male Pins	9	DB9
3M M7VWK-2506R	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin	Multiple, Ribbon	Plug, Male Pins		DB25
3M M7VWK-0910J	Gold	10 ft	3.05 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin		Plug, Male Pins	9	DB9
3M M7VWK-3710J	Gold	10 ft	3.05 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin		Plug, Male Pins	37	DB37
3M M7VWK-5010R	Gold	10 ft	3.05 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin	Multiple, Ribbon	Plug, Male Pins	50	DB50
3M M7VWK-2510J	Gold	10 ft	3.05 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin		Plug, Male Pins		DB25
3M M7VWK-3706R	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin	Multiple, Ribbon	Plug, Male Pins	37	DB37
3M M7VWK-2506J	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin		Plug, Male Pins		DB25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

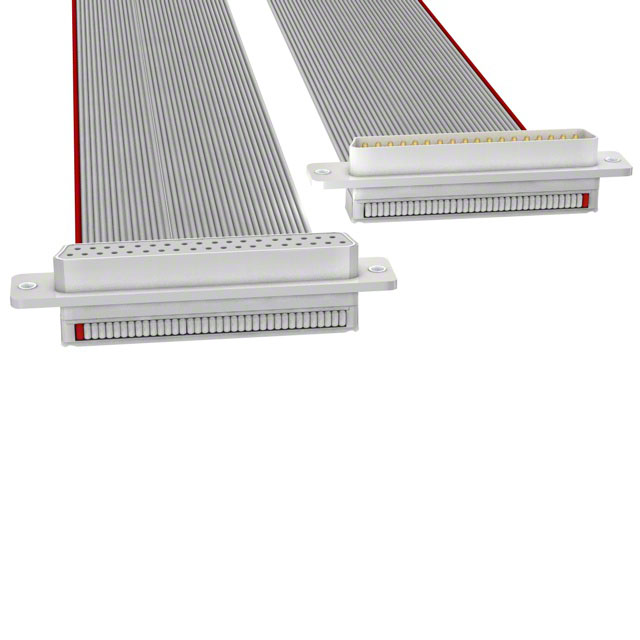

D-Sub Cable Assembly DB37 Gray, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Plug, Male Pins Unshielded
