MP-3030-2200-50-70

Luminus Devices Inc.

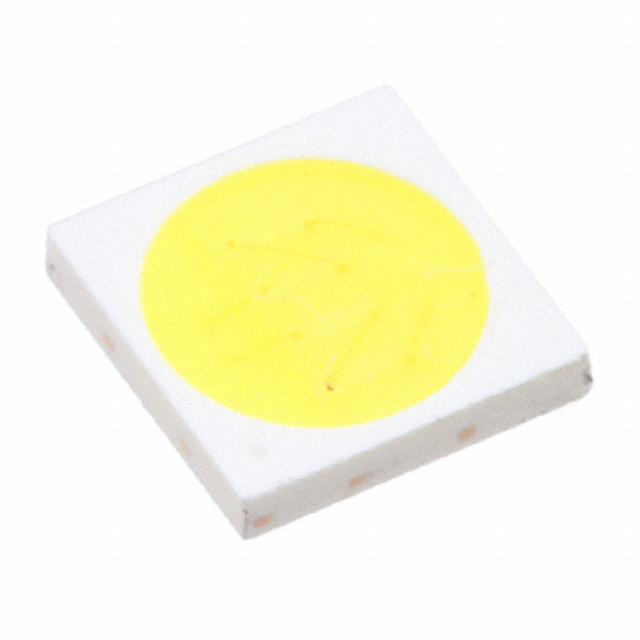

LED MP3030 COOL WHITE 5000K 3030

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MP-3030-2200-50-70

Luminus Devices Inc.

LED MP3030 COOL WHITE 5000K 3030

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.24
		10	$ 0.16
		100	$ 0.11
		500	$ 0.09
		1000	$ 0.08
		2000	$ 0.08
	Digi-Reel®	1	$ 0.24
		10	$ 0.16
		100	$ 0.11
		500	$ 0.09
		1000	$ 0.08
		2000	$ 0.08
	Tape & Reel (TR)	5000	$ 0.08
		10000	$ 0.08
		15000	$ 0.07
		25000	$ 0.07
		35000	$ 0.07
		50000	$ 0.07
		125000	$ 0.06

Description

General part information

MP-3030 Series

LED Lighting MP-3030 White, Cool 5000K (Typ) 6V 150mA 110° 1212 (3030 Metric)

Documents

Technical documentation and resources

Datasheet

Specification	MP-3030-2200-50-70	MP-3030 Series

	-	-
CCT (K)	5000 K	2200 - 6500 K
Color	Cool, White	Cool, White, Warm, Neutral
CRI (Color Rendering Index)	70	70 - 95
Current - Max [Max]	240 mA	120 - 400 mA
Current - Test	150 mA	45 - 150 mA
Flux @ 25°C, Current - Test	122 lm	28 - 148 lm
Height - Seated (Max)	-	0.66 - 0.7 mm
Height - Seated (Max)	-	0.026 - 0.028 in
Height - Seated (Max) [Max] [z]	0.52 mm	0.52 mm
Height - Seated (Max) [Max] [z]	0.02 "	0.02 "
Lumens/Watt @ Current - Test	136 lm/W	111 - 230 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	3030	3030
Supplier Device Package	-	1212
Thermal Resistance of Package	-	16 °C/W
Thermal Resistance of Package	-	9 °C/W
Thermal Resistance of Package	-	23 °C/W
Thermal Resistance of Package [custom]	11 °C/W	11 °C/W
Viewing Angle	110 °	110 - 120 °
Voltage - Forward (Vf) (Typ)	6 V	2.68 - 6.2 V

Part

Mounting Type

CCT (K)

CRI (Color Rendering Index)

Current - Test

Height - Seated (Max) [Max]

Size / Dimension [x]

Size / Dimension [y]

Supplier Device Package

Viewing Angle

Thermal Resistance of Package

Current - Max [Max]

Lumens/Watt @ Current - Test

Voltage - Forward (Vf) (Typ)

Color

Package / Case

Flux @ 25°C, Current - Test

Thermal Resistance of Package [diameter]

Supplier Device Package

Thermal Resistance of Package [custom]

Height - Seated (Max) [Max] [z]

Thermal Resistance of Package [custom]

Luminus Devices Inc.

MP-3030-210H-50-90

Surface Mount

5000 K

150 mA

0.7 mm

0.028 in

0.118 in

3 mm

0.118 in

3030

110 °

16 °C/W

240 mA

140 lm/W

6 V

Cool, White

1212

3030 Metric

126 lm

Luminus Devices Inc.

MP-3030-12ZH-50-90

Surface Mount

5000 K

65 mA

0.7 mm

0.028 in

0.118 in

3 mm

0.118 in

3030

120 °

400 mA

2.69 V

Cool, White

1212

3030 Metric

30 lm

9 °C/W

Luminus Devices Inc.

MP-3030-120H-35-80

Surface Mount

3500 K

65 mA

0.66 mm

0.026 in

0.118 in

3 mm

0.118 in

120 °

400 mA

218 lm/W

2.68 V

Warm, White

1212

3030 Metric

38 lm

9 °C/W

1212

Luminus Devices Inc.

MP-3030-2100-30-90

Surface Mount

150 mA

0.118 in

3 mm

0.118 in

3030

110 °

240 mA

119 lm/W

6.1 V

Warm, White

1212

3030 Metric

109 lm

11 °C/W

0.52 mm

0.02 "

Luminus Devices Inc.

MP-3030-210H-35-80

Surface Mount

3500 K

150 mA

0.7 mm

0.028 in

0.118 in

3 mm

0.118 in

3030

110 °

16 °C/W

240 mA

160 lm/W

6 V

Warm, White

1212

3030 Metric

144 lm

Luminus Devices Inc.

MP-3030-1100-50-70

Surface Mount

5000 K

150 mA

0.118 in

3 mm

0.118 in

3030

110 °

240 mA

158 lm/W

3 V

Cool, White

1212

3030 Metric

71 lm

11 °C/W

0.52 mm

0.02 "

Luminus Devices Inc.

MP-3030-1100-27-80

Surface Mount

2700 K

150 mA

0.118 in

3 mm

0.118 in

3030

110 °

240 mA

133 lm/W

3 V

Warm, White

1212

3030 Metric

60 lm

11 °C/W

0.52 mm

0.02 "

Luminus Devices Inc.

MP-3030-120H-50-80

Surface Mount

5000 K

65 mA

0.66 mm

0.026 in

0.118 in

3 mm

0.118 in

120 °

400 mA

230 lm/W

2.68 V

Cool, White

1212

3030 Metric

40 lm

9 °C/W

1212

Luminus Devices Inc.

MP-3030-120H-40-80

Surface Mount

4000 K

65 mA

0.66 mm

0.026 in

0.118 in

3 mm

0.118 in

120 °

400 mA

230 lm/W

2.68 V

Neutral, White

1212

3030 Metric

40 lm

9 °C/W

1212

Luminus Devices Inc.

MP-3030-2100-50-70

Surface Mount

5000 K

150 mA

0.118 in

3 mm

0.118 in

3030

110 °

240 mA

152 lm/W

6.1 V

Cool, White

1212

3030 Metric

139 lm

11 °C/W

0.52 mm

0.02 "

Part	Mounting Type	CCT (K)	CRI (Color Rendering Index)	Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Supplier Device Package	Viewing Angle	Thermal Resistance of Package	Current - Max [Max]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Color	Package / Case	Package / Case	Flux @ 25°C, Current - Test	Thermal Resistance of Package [diameter]	Supplier Device Package	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Luminus Devices Inc. MP-3030-210H-50-90	Surface Mount	5000 K	90	150 mA	0.7 mm	0.028 in	0.118 in	3 mm	3 mm	0.118 in	3030	110 °	16 °C/W	240 mA	140 lm/W	6 V	Cool, White	1212	3030 Metric	126 lm
Luminus Devices Inc. MP-3030-12ZH-50-90	Surface Mount	5000 K	90	65 mA	0.7 mm	0.028 in	0.118 in	3 mm	3 mm	0.118 in	3030	120 °		400 mA		2.69 V	Cool, White	1212	3030 Metric	30 lm	9 °C/W
Luminus Devices Inc. MP-3030-120H-35-80	Surface Mount	3500 K	80	65 mA	0.66 mm	0.026 in	0.118 in	3 mm	3 mm	0.118 in		120 °		400 mA	218 lm/W	2.68 V	Warm, White	1212	3030 Metric	38 lm	9 °C/W	1212
Luminus Devices Inc. MP-3030-2100-30-90	Surface Mount		90	150 mA			0.118 in	3 mm	3 mm	0.118 in	3030	110 °		240 mA	119 lm/W	6.1 V	Warm, White	1212	3030 Metric	109 lm			11 °C/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-3030-210H-35-80	Surface Mount	3500 K	80	150 mA	0.7 mm	0.028 in	0.118 in	3 mm	3 mm	0.118 in	3030	110 °	16 °C/W	240 mA	160 lm/W	6 V	Warm, White	1212	3030 Metric	144 lm
Luminus Devices Inc. MP-3030-1100-50-70	Surface Mount	5000 K	70	150 mA			0.118 in	3 mm	3 mm	0.118 in	3030	110 °		240 mA	158 lm/W	3 V	Cool, White	1212	3030 Metric	71 lm			11 °C/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-3030-1100-27-80	Surface Mount	2700 K	80	150 mA			0.118 in	3 mm	3 mm	0.118 in	3030	110 °		240 mA	133 lm/W	3 V	Warm, White	1212	3030 Metric	60 lm			11 °C/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-3030-120H-50-80	Surface Mount	5000 K	80	65 mA	0.66 mm	0.026 in	0.118 in	3 mm	3 mm	0.118 in		120 °		400 mA	230 lm/W	2.68 V	Cool, White	1212	3030 Metric	40 lm	9 °C/W	1212
Luminus Devices Inc. MP-3030-120H-40-80	Surface Mount	4000 K	80	65 mA	0.66 mm	0.026 in	0.118 in	3 mm	3 mm	0.118 in		120 °		400 mA	230 lm/W	2.68 V	Neutral, White	1212	3030 Metric	40 lm	9 °C/W	1212
Luminus Devices Inc. MP-3030-2100-50-70	Surface Mount	5000 K	70	150 mA			0.118 in	3 mm	3 mm	0.118 in	3030	110 °		240 mA	152 lm/W	6.1 V	Cool, White	1212	3030 Metric	139 lm			11 °C/W	0.52 mm	0.02 "
