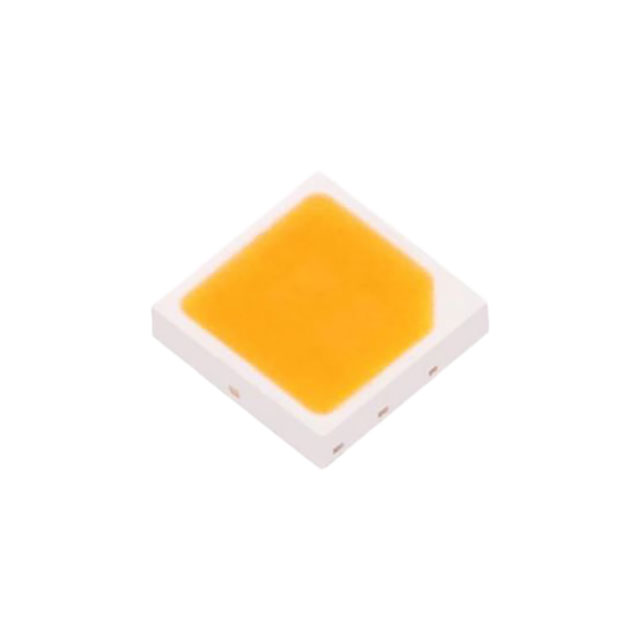

MP-3030-120H-50-80

Active

Luminus Devices Inc.

LED MP3030120H WHITE 5000K 1212

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MP-3030-120H-50-80

Active

Luminus Devices Inc.

LED MP3030120H WHITE 5000K 1212

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MP-3030-120H-50-80	MP-3030 Series

	-	-
CCT (K)	5000 K	2200 - 6500 K
Color	Cool, White	Cool, White, Warm, Neutral
CRI (Color Rendering Index)	80	70 - 95
Current - Max [Max]	400 mA	120 - 400 mA
Current - Test	65 mA	45 - 150 mA
Flux @ 25°C, Current - Test	40 lm	28 - 148 lm
Height - Seated (Max)	-	0.52 mm
Height - Seated (Max)	-	0.02 "
Height - Seated (Max) [Max]	0.66 mm	0.66 - 0.7 mm
Height - Seated (Max) [Max]	0.026 in	0.026 - 0.028 in
Lumens/Watt @ Current - Test	230 lm/W	111 - 230 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	1212	1212
Supplier Device Package	-	3030
Thermal Resistance of Package	-	16 °C/W
Thermal Resistance of Package	-	11 °C/W
Thermal Resistance of Package	-	23 °C/W
Thermal Resistance of Package [diameter]	9 °C/W	9 °C/W
Viewing Angle	120 °	110 - 120 °
Voltage - Forward (Vf) (Typ)	2.68 V	2.68 - 6.2 V

MP-3030 Series

LED MP3030210H WHITE 5000K 3030

Part	Mounting Type	CCT (K)	CRI (Color Rendering Index)	Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Supplier Device Package	Viewing Angle	Thermal Resistance of Package	Current - Max [Max]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Color	Package / Case	Package / Case	Flux @ 25°C, Current - Test	Thermal Resistance of Package [diameter]	Supplier Device Package	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Luminus Devices Inc. MP-3030-210H-50-90	Surface Mount	5000 K	90	150 mA	0.7 mm	0.028 in	0.118 in	3 mm	3 mm	0.118 in	3030	110 °	16 °C/W	240 mA	140 lm/W	6 V	Cool, White	1212	3030 Metric	126 lm
Luminus Devices Inc. MP-3030-12ZH-50-90	Surface Mount	5000 K	90	65 mA	0.7 mm	0.028 in	0.118 in	3 mm	3 mm	0.118 in	3030	120 °		400 mA		2.69 V	Cool, White	1212	3030 Metric	30 lm	9 °C/W
Luminus Devices Inc. MP-3030-120H-35-80	Surface Mount	3500 K	80	65 mA	0.66 mm	0.026 in	0.118 in	3 mm	3 mm	0.118 in		120 °		400 mA	218 lm/W	2.68 V	Warm, White	1212	3030 Metric	38 lm	9 °C/W	1212
Luminus Devices Inc. MP-3030-2100-30-90	Surface Mount		90	150 mA			0.118 in	3 mm	3 mm	0.118 in	3030	110 °		240 mA	119 lm/W	6.1 V	Warm, White	1212	3030 Metric	109 lm			11 °C/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-3030-210H-35-80	Surface Mount	3500 K	80	150 mA	0.7 mm	0.028 in	0.118 in	3 mm	3 mm	0.118 in	3030	110 °	16 °C/W	240 mA	160 lm/W	6 V	Warm, White	1212	3030 Metric	144 lm
Luminus Devices Inc. MP-3030-1100-50-70	Surface Mount	5000 K	70	150 mA			0.118 in	3 mm	3 mm	0.118 in	3030	110 °		240 mA	158 lm/W	3 V	Cool, White	1212	3030 Metric	71 lm			11 °C/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-3030-1100-27-80	Surface Mount	2700 K	80	150 mA			0.118 in	3 mm	3 mm	0.118 in	3030	110 °		240 mA	133 lm/W	3 V	Warm, White	1212	3030 Metric	60 lm			11 °C/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-3030-120H-50-80	Surface Mount	5000 K	80	65 mA	0.66 mm	0.026 in	0.118 in	3 mm	3 mm	0.118 in		120 °		400 mA	230 lm/W	2.68 V	Cool, White	1212	3030 Metric	40 lm	9 °C/W	1212
Luminus Devices Inc. MP-3030-120H-40-80	Surface Mount	4000 K	80	65 mA	0.66 mm	0.026 in	0.118 in	3 mm	3 mm	0.118 in		120 °		400 mA	230 lm/W	2.68 V	Neutral, White	1212	3030 Metric	40 lm	9 °C/W	1212
Luminus Devices Inc. MP-3030-2100-50-70	Surface Mount	5000 K	70	150 mA			0.118 in	3 mm	3 mm	0.118 in	3030	110 °		240 mA	152 lm/W	6.1 V	Cool, White	1212	3030 Metric	139 lm			11 °C/W	0.52 mm	0.02 "
