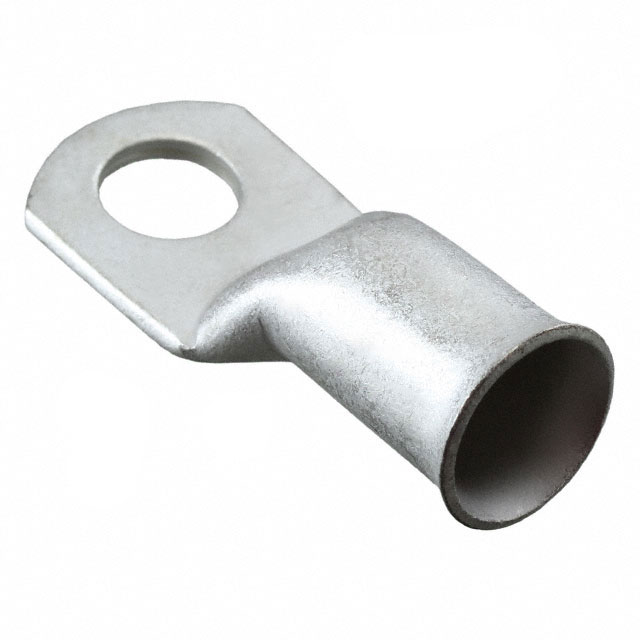

BU-L00-500TIN

Active

Mueller Electric Co

LUG 2/0 AWG, 1/2" STUD TIN

Search across all available documentation for this part.

Active

Mueller Electric Co

LUG 2/0 AWG, 1/2" STUD TIN

Technical Specifications

Parameters and characteristics for this part

Specification	BU-L00-500TIN

Contact Finish	Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall [x]	2.05 "
Length - Overall [x]	52.07 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	1/2 Stud
Terminal Type	Circular Tubular (Battery Lugs)
Termination	Crimp
Thickness	0.095 in
Thickness	2.41 mm
Width - Outer Edges	21.08 mm
Width - Outer Edges	0.83 in

Part	Mounting Type	Termination	Width - Outer Edges	Width - Outer Edges	Terminal Type	Contact Material	Insulation	Stud/Tab Size	Contact Finish	Thickness	Thickness	Length - Overall [x]	Length - Overall [x]
Mueller Electric Co BU-L00-500TIN	Free Hanging (In-Line)	Crimp	21.08 mm	0.83 in	Circular Tubular (Battery Lugs)	Copper	Non-Insulated	1/2 Stud	Tin	0.095 in	2.41 mm	2.05 "	52.07 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 1/2 Stud Circular Tubular (Battery Lugs) 2/0 AWG Crimp
