1218440-4

Active

TE Connectivity Aerospace, Defense and Marine

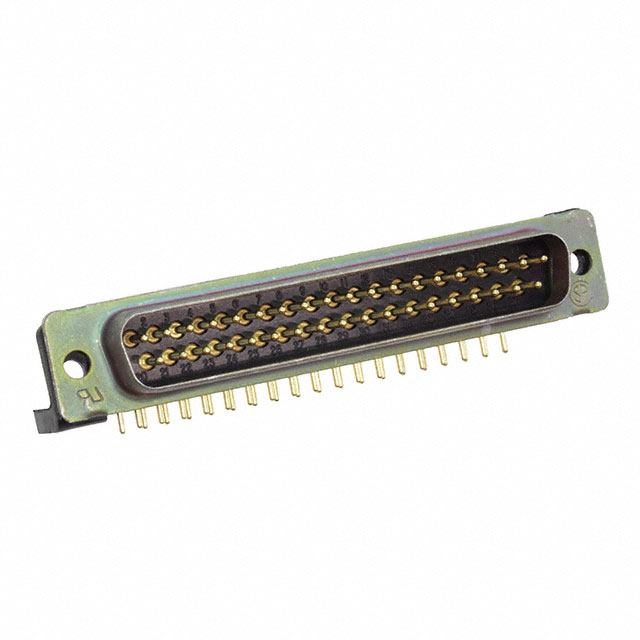

CONN D-SUB PLUG 37POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-SUB PLUG 37POS R/A SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.71

General part information

37 Position D-Sub Plug, Male Pins Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1218440-4	1218440 Series

Backset Spacing	8.08 mm	8.08 mm
Backset Spacing	0.318 "	0.318 "
Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	37	9 - 50
Number of Rows	2	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish [custom]	Steel	Steel
Shell Material, Finish [custom]	Cadmium Plated	Cadmium Plated
Shell Size, Connector Layout	4 (DC, C)	4 (DC, C)
Shell Size, Connector Layout	-	2 - 5
Shell Size, Connector Layout	-	DE, E
Shell Size, Connector Layout	-	1
Termination	Solder	Solder

CONN D-SUB PLUG 50POS R/A SLDR

Part	Current Rating (Amps)	Number of Positions	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Type	Contact Finish	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Contact Material	Color	Mounting Type	Number of Rows	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
TE Connectivity Aerospace, Defense and Marine 1218440-5	5 A	50	D-Sub	10 Áin	0.25 Ám	Male Pins, Plug	Signal	Gold	Steel	Cadmium Plated	Brass	Black	Through Hole, Right Angle	3	Solder	-55 °C	125 °C	Housing/Shell (Unthreaded)	5	8.08 mm	0.318 "
TE Connectivity Aerospace, Defense and Marine 1218440-6		9	D-Sub	10 Áin	0.25 Ám	Male Pins, Plug	Signal	Gold	Steel	Cadmium Plated	Brass	Black	Through Hole, Right Angle	2	Solder			Housing/Shell (Unthreaded)		8.08 mm	0.318 "	DE, E	1
TE Connectivity Aerospace, Defense and Marine 1218440-4	5 A	37	D-Sub	10 Áin	0.25 Ám	Male Pins, Plug	Signal	Gold	Steel	Cadmium Plated	Brass	Black	Through Hole, Right Angle	2	Solder	-55 °C	125 °C	Housing/Shell (Unthreaded)		8.08 mm	0.318 "			4 (DC, C)
TE Connectivity Aerospace, Defense and Marine 1218440-2	5 A	15	D-Sub	10 Áin	0.25 Ám	Male Pins, Plug	Signal	Gold	Steel	Cadmium Plated	Brass	Black	Through Hole, Right Angle	2	Solder	-55 °C	125 °C	Housing/Shell (Unthreaded)	2	8.08 mm	0.318 "
