EX0200010000G

Active

AMPHENOL ANYTEK

EX 5.0 - 2P , NL66 , BRASS BRIGH

Search across all available documentation for this part.

Active

AMPHENOL ANYTEK

EX 5.0 - 2P , NL66 , BRASS BRIGH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EX0200010000G	EX02 Series

	-	-
Color	Black	Black
Contact Material	Brass	Brass
Contact Mating Finish	Tin	Tin
Contact Tail Length	0.132 in	0.132 - 0.134 in
Contact Tail Length	3.35 mm	3.35 - 3.4 mm
Current - UL	10 A	10 A
Header Orientation	Vertical	Vertical
Housing Material	Thermoplastic	Thermoplastic
Insulation Height	9.5 mm	9.5 mm
Insulation Height	0.374 in	0.374 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	2	2
Termination Style	Solder	Solder
Type	Male Pins, Partial Shroud, Header	Male Pins, Partial Shroud, Header
Voltage - UL	300 V	300 V

EX 5.0 - 2P , NL66 , BRASS BRIGH

Part	Contact Mating Finish	Type	Number of Levels	Insulation Height	Insulation Height	Current - UL	Number of Positions	Mounting Type	Housing Material	Termination Style	Contact Material	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Color	Header Orientation	Contact Tail Length	Contact Tail Length	Voltage - UL	Material Flammability Rating	Pitch [x]	Pitch [x]
AMPHENOL ANYTEK EX0200010000G	Tin	Header, Male Pins, Partial Shroud	1	9.5 mm	0.374 in	10 A	2	Through Hole	Thermoplastic	Solder	Brass	2	-40 °C	115 °C	Black	Vertical	0.132 in	3.35 mm	300 V	UL94 V-0	5 mm	0.197 in
AMPHENOL ANYTEK EX020002A000G
AMPHENOL ANYTEK EX0200000000G		Header, Male Pins, Partial Shroud	1	9.5 mm	0.374 in	10 A	2	Through Hole	Thermoplastic	Solder	Brass	2	-40 °C	115 °C	Black	Vertical	0.134 in	3.4 mm	300 V	UL94 V-0	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

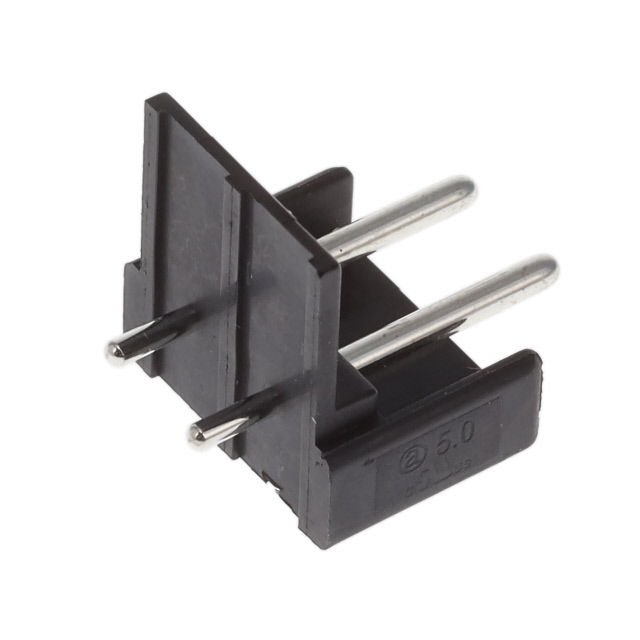

2 Position Terminal Block Header, Male Pins, Partial Shroud 0.197" (5.00mm) Vertical Through Hole
