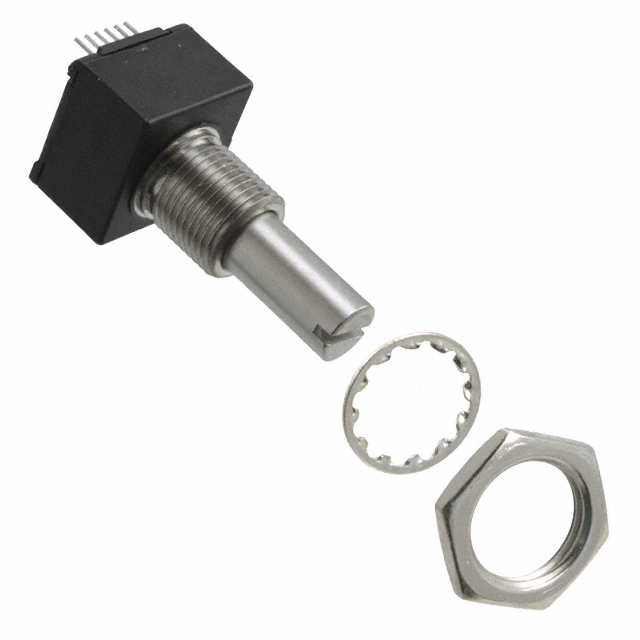

EM14A0D-B28-L064N

Active

Bourns Inc.

ROTARY OPTICAL ENCODER - 14MM /TRAY PACKAGING

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY OPTICAL ENCODER - 14MM /TRAY PACKAGING

Technical Specifications

Parameters and characteristics for this part

Part	Encoder Type	Actuator Type	Orientation	Rotational Life (Cycles Min)	Pulses per Revolution	Mounting Type	Output Type	Termination Style	Actuator Type
Bourns Inc. EM14A0D-B28-L008S	Optical	1/4" Dia Slotted End	Vertical	1M	8	Panel PCB Through Hole	Quadrature (Incremental)	PC Pin
Bourns Inc. EM14A0D-B24-L032S	Optical	1/4" Dia Slotted End	Vertical	1M		Panel PCB Through Hole	Quadrature (Incremental)	PC Pin
Bourns Inc. EM14A0D-B24-L064S	Optical	1/4" Dia Slotted End	Vertical	1M	64	Panel PCB Through Hole	Quadrature (Incremental)	PC Pin
Bourns Inc. EM14A0D-B28-L064N	Optical	1/4" Dia Slotted End	Vertical	1M	64	Panel PCB Through Hole	Quadrature (Incremental)	PC Pin
Bourns Inc. EM14A0D-C24-L008N	Optical	Flatted End	Vertical	1M	8	Panel PCB Through Hole	Quadrature (Incremental)	PC Pin	0.25
Bourns Inc. EM14A0D-C24-L064N	Optical	Flatted End	Vertical	1M	64	Panel PCB Through Hole	Quadrature (Incremental)	PC Pin	0.25
Bourns Inc. EM14A0D-C24-L032S	Optical	Flatted End	Vertical	1M		Panel PCB Through Hole	Quadrature (Incremental)	PC Pin	0.25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Optical 64 Quadrature (Incremental) Vertical
