3355/18

Active

3M (TC)

80001214719 3355/18-100=UL/18/CAB/TYP1/TPE/RC/28AWG/STR/.050"/100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cables & Accessories Selection Guide

3355/18

Active

3M (TC)

80001214719 3355/18-100=UL/18/CAB/TYP1/TPE/RC/28AWG/STR/.050"/100

Deep-Dive with AI

DocumentsDatasheet Cables & Accessories Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3355/18

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	0.9 in
Ribbon Width	22.86 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3355 Series

Part	Conductor Material	First Conductor Mark	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Insulation Resistance	Spool Size	Spool Size	Features	Cable Type	Ribbon Width [y]	Ribbon Width [y]	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Material	Voltage	Length	Pitch [x]	Pitch [x]	Ribbon Thickness	Ribbon Thickness	Length [x]	Length [x]	Wire Gauge	Ribbon Width [x]	Ribbon Width [x]	Length	Length	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width	Ribbon Width
3M (TC) 3355/40 100	Copper Tinned	Blue	40	7	36 AWG	10 GOhm	30.48 m	100 ft	Zippable	Flat Cable	50.8 mm	2 in	Unshielded	-40 °C	105 ░C	Gray	Thermoplastic Elastomer (TPE)	300 V	Enter Number of Feet in Order Quantity	0.05 in	1.27 mm	0.89 mm	0.035 in	100 ft	30.48 m	28 AWG
3M (TC) 3355/16	Copper Tinned	Blue	16	7	36 AWG	10 GOhm			Zippable	Flat Cable	20.32 mm	0.8 in	Unshielded	-40 °C	105 ░C	Gray	Thermoplastic Elastomer (TPE)	300 V		0.05 in	1.27 mm	0.89 mm	0.035 in	100 ft	30.48 m	28 AWG
3M (TC) 3355/14 100	Copper Tinned	Blue	14	7	36 AWG	10 GOhm			Zippable	Flat Cable			Unshielded	-40 °C	105 ░C	Gray	Thermoplastic Elastomer (TPE)	300 V		0.05 in	1.27 mm	0.89 mm	0.035 in	10 ft 100 ft	3.05 m 30.48 m	28 AWG	0.7 in	17.78 mm	1 ft 25 ft	7.62 m 304.8 mm
3M (TC) 3355/10 300	Copper Tinned	Blue	10	7	36 AWG	10 GOhm			Zippable	Flat Cable			Unshielded	-40 °C	105 ░C	Gray	Thermoplastic Elastomer (TPE)	300 V		0.05 in	1.27 mm	0.89 mm	0.035 in			28 AWG			300 ft	91.44 m	0.5 "	12.7 mm
3M (TC) 3355/10 100	Copper Tinned	Blue	10	7	36 AWG	10 GOhm	30.48 m	100 ft	Zippable	Flat Cable			Unshielded	-40 °C	105 ░C	Gray	Thermoplastic Elastomer (TPE)	300 V	Enter Number of Feet in Order Quantity	0.05 in	1.27 mm	0.89 mm	0.035 in			28 AWG					0.5 "	12.7 mm
3M (TC) 3355/18	Copper Tinned	Blue	18	7	36 AWG	10 GOhm			Zippable	Flat Cable			Unshielded	-40 °C	105 ░C	Gray	Thermoplastic Elastomer (TPE)	300 V		0.05 in	1.27 mm	0.89 mm	0.035 in	100 ft	30.48 m	28 AWG							0.9 in	22.86 mm
3M (TC) 3355/24 100	Copper Tinned	Blue	24	7	36 AWG	10 GOhm			Zippable	Flat Cable	30.48 mm	1.2 in	Unshielded	-40 °C	105 ░C	Gray	Thermoplastic Elastomer (TPE)	300 V		0.05 in	1.27 mm	0.89 mm	0.035 in	100 ft	30.48 m	28 AWG			50 ft	15.24 m
3M (TC) 3355/60 100SF	Copper Tinned	Blue	60	7	36 AWG	10 GOhm			Splice Free Zippable	Flat Cable			Unshielded	-40 °C	105 ░C	Gray	Thermoplastic Elastomer (TPE)	300 V		0.05 in	1.27 mm	0.89 mm	0.035 in	100 ft	30.48 m	28 AWG							3 in	76.2 mm
3M (TC) 3355/34 100	Copper Tinned	Blue	34	7	36 AWG	10 GOhm			Zippable	Flat Cable	43.18 mm	1.7 in	Unshielded	-40 °C	105 ░C	Gray	Thermoplastic Elastomer (TPE)	300 V		0.05 in	1.27 mm	0.89 mm	0.035 in	100 ft	30.48 m	28 AWG
3M (TC) 3355/30 100	Copper Tinned	Blue	30	7	36 AWG	10 GOhm			Zippable	Flat Cable	38.1 mm	1.5 in	Unshielded	-40 °C	105 ░C	Gray	Thermoplastic Elastomer (TPE)	300 V		0.05 in	1.27 mm	0.89 mm	0.035 in	100 ft	30.48 m	28 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.23
Newark	Spool of 100	10	$ 131.62
		25	$ 122.99
		50	$ 118.67
		100	$ 114.36

Description

General part information

3355 Series

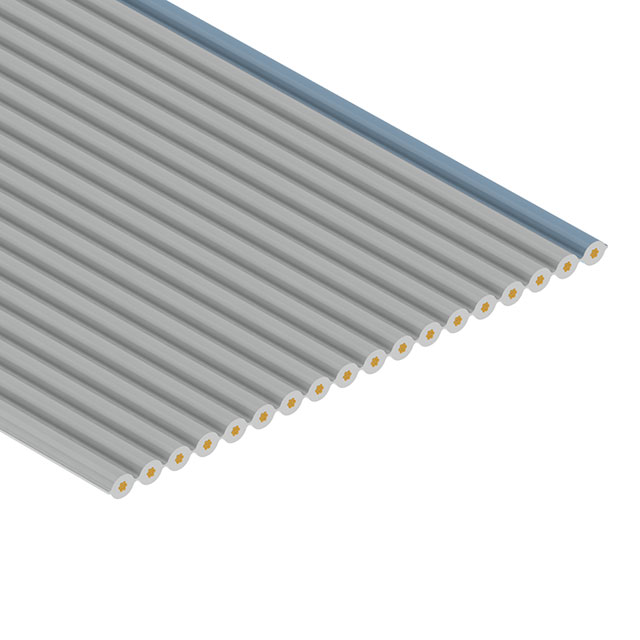

Flat Ribbon Cable Gray 18 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)

Documents

Technical documentation and resources

Datasheet

Cables & Accessories Selection Guide

Datasheet
